Product Description

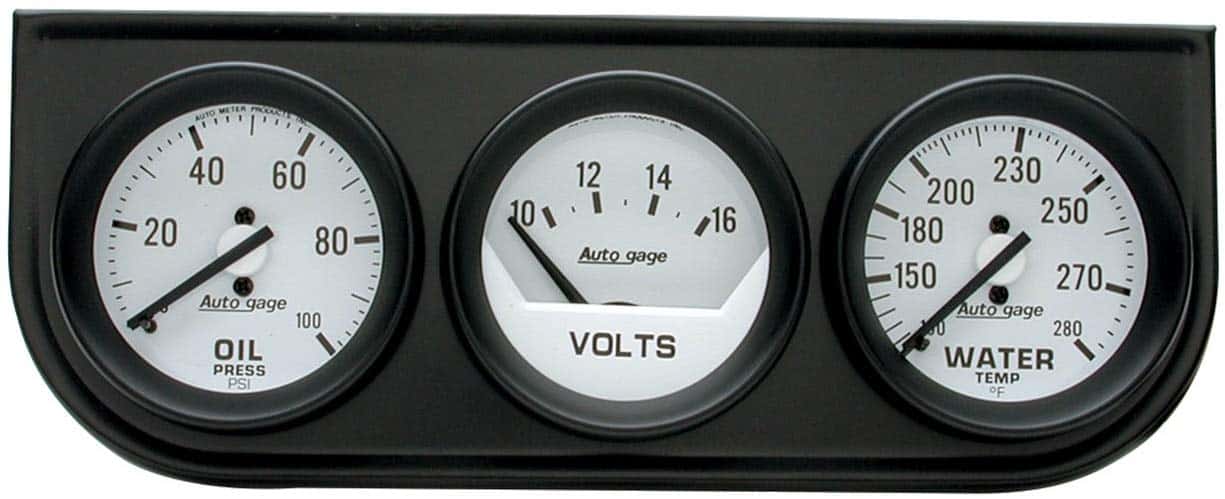

We start with the Auto Meter 3 gauge cluster, Then include our Adaptive fittings, Be sure to select yours at checkout.

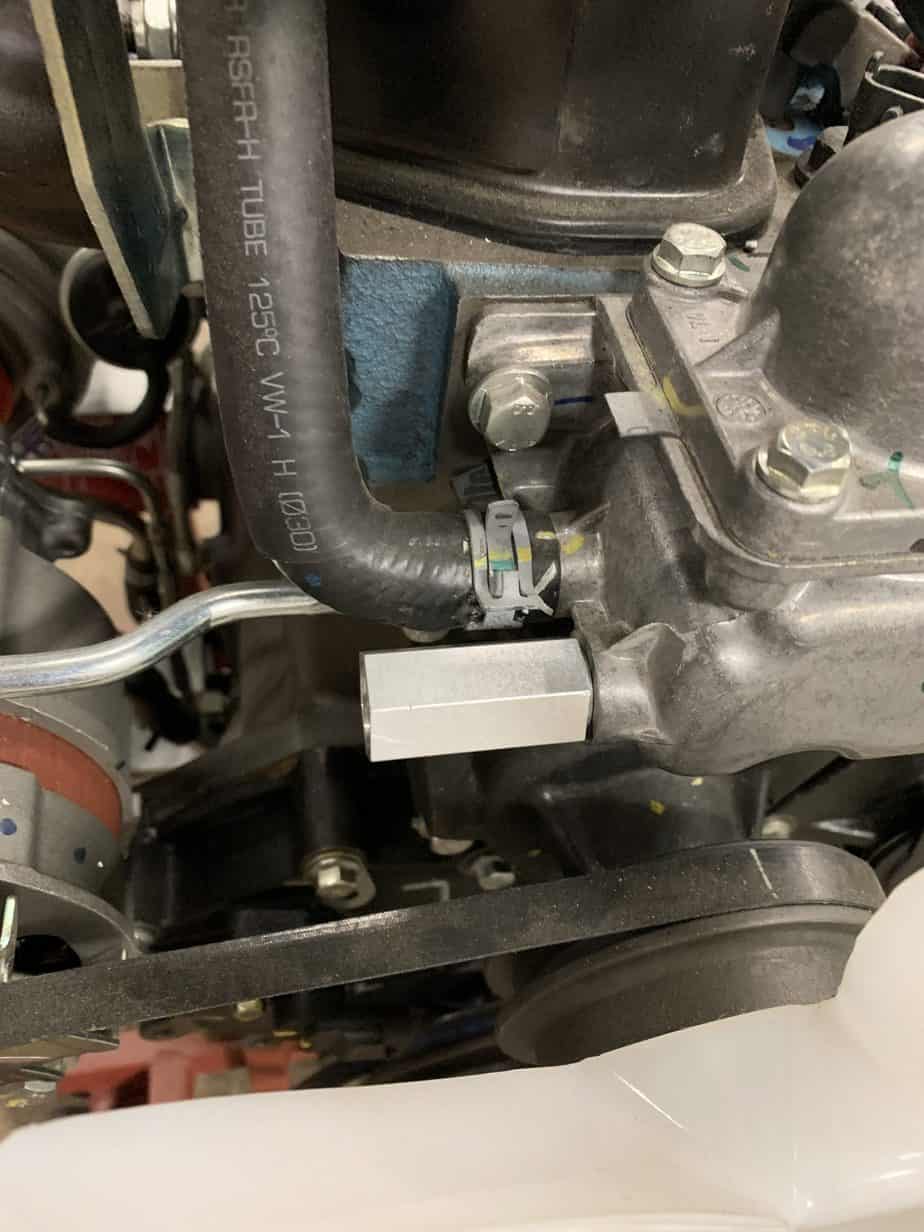

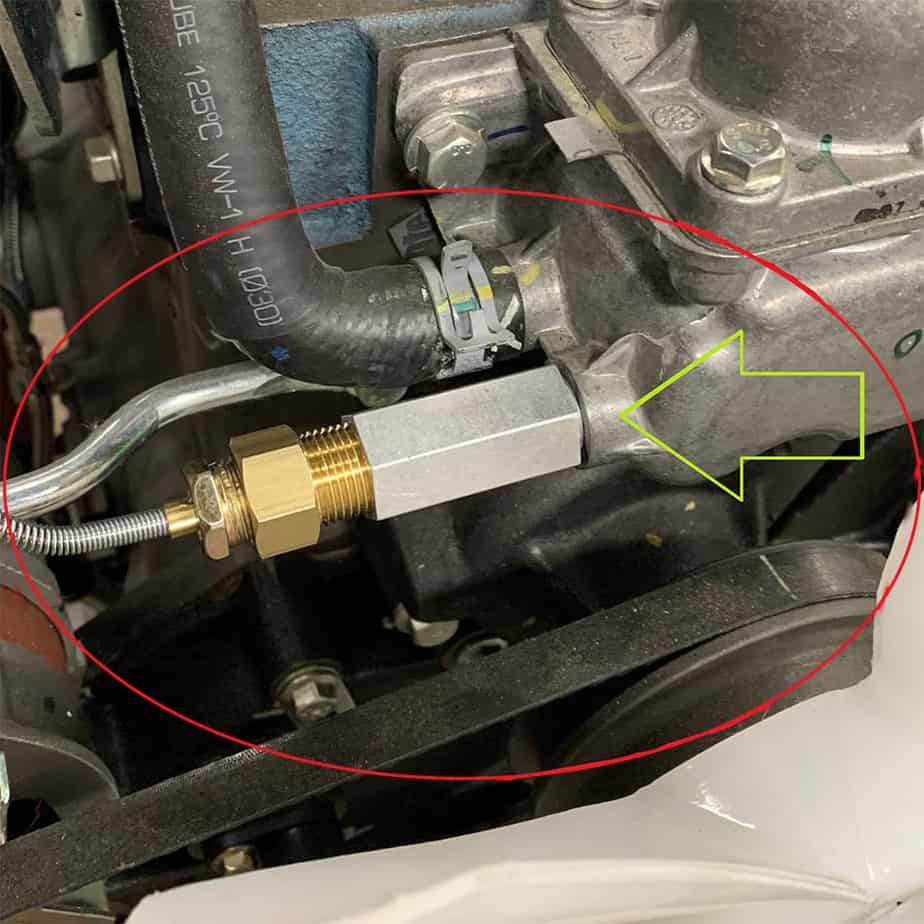

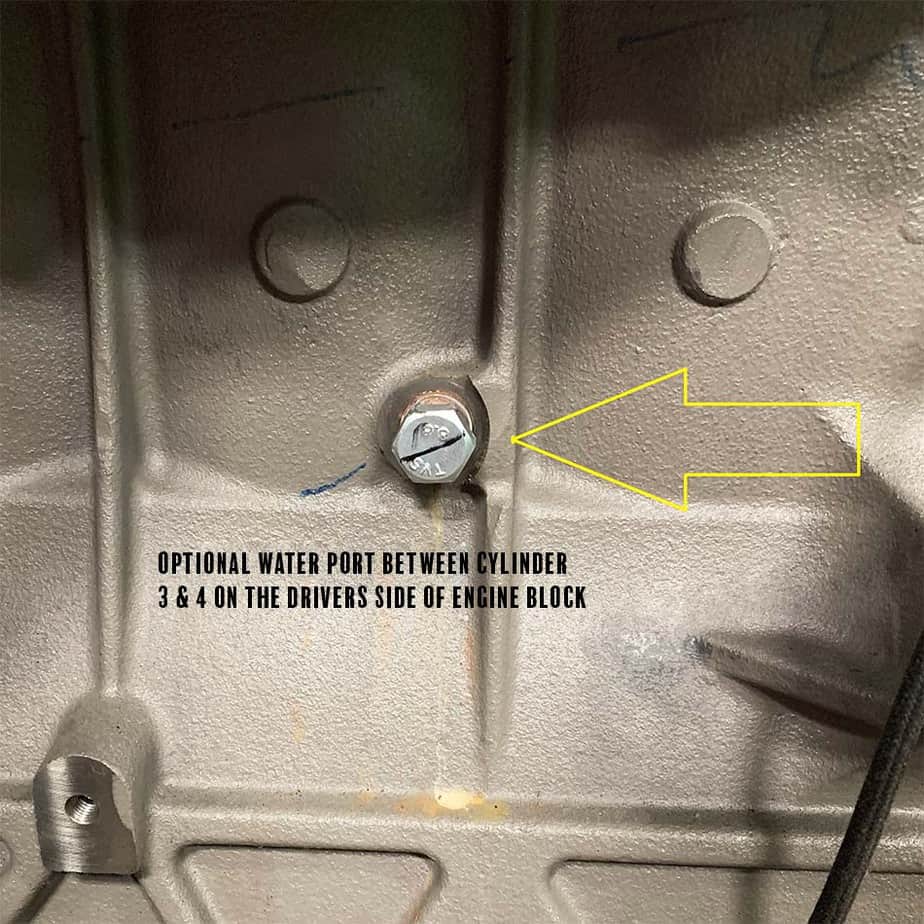

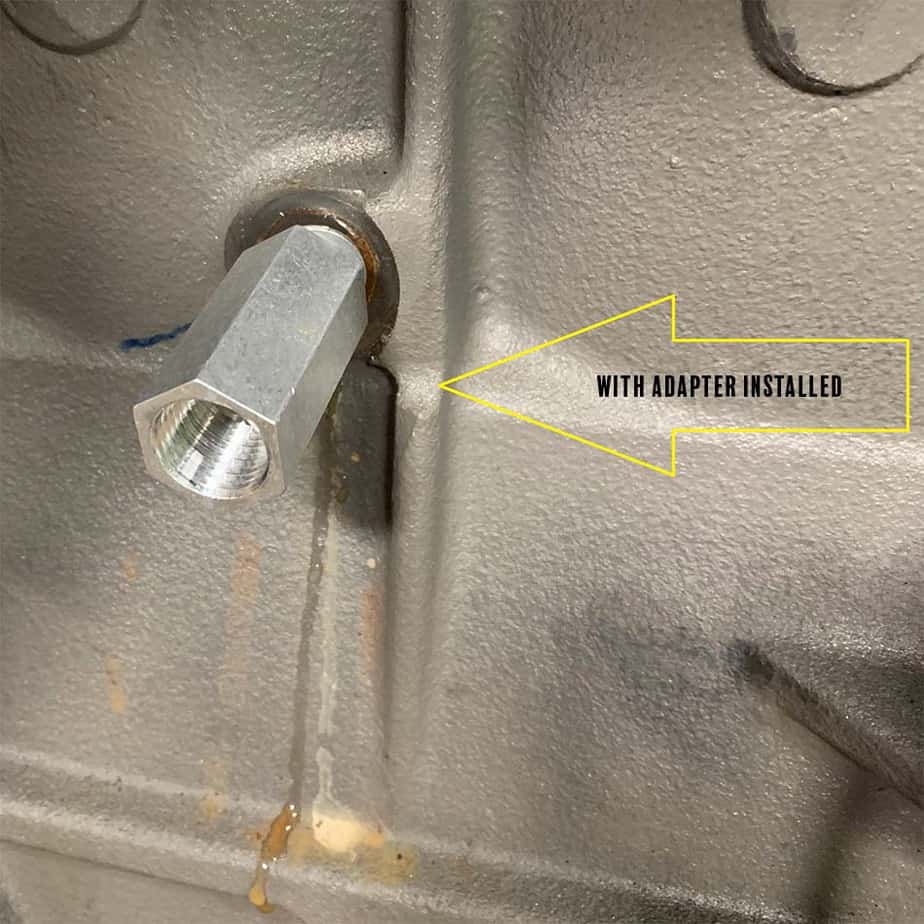

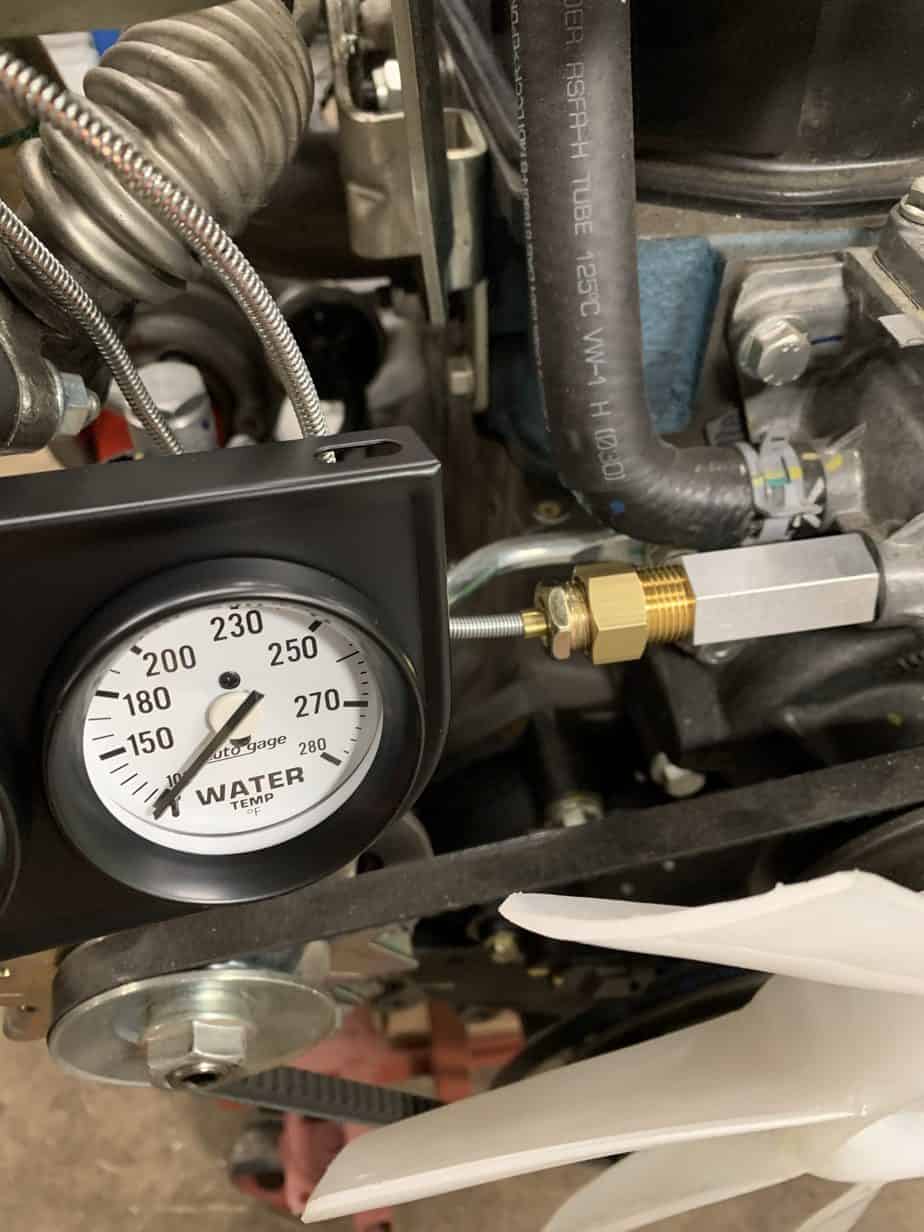

Water 2.5L - There are 2 locations for the water temp, the 1st and easiest is located on the Thermostat Housing, The 2nd being on the driver side of the engine block. Then use Autometer supplied parts & instructions. You will lose a little bit of coolant when removing either of these, after install, be sure to check your coolant level. Top off with factory spec Coolant of: - JIS K2234/ASTM D3306

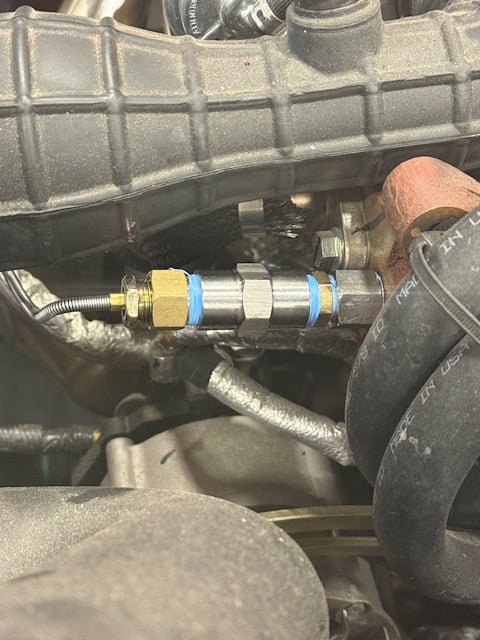

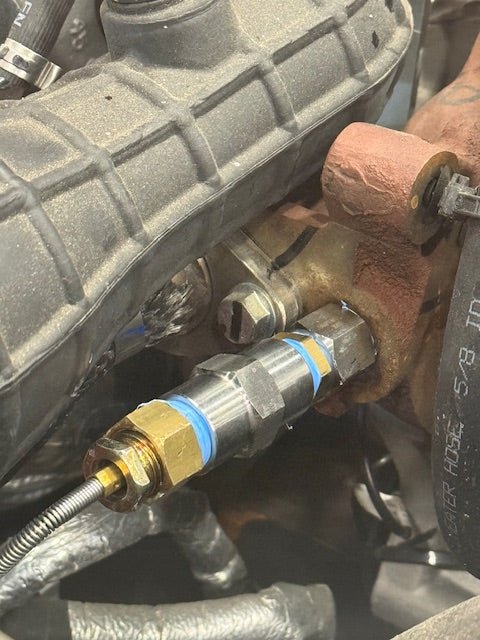

Water 2.7L - There are 2 locations, One being the port on the EGR (see pics) and the other being the port on the side of the engine block, same location as the 2.5L. Then use Autometer supplied parts & instructions. You will lose a little bit of coolant when removing either of these, after install, be sure to check your coolant level. Top off with factory spec Coolant of: - JIS K2234/ASTM D3306

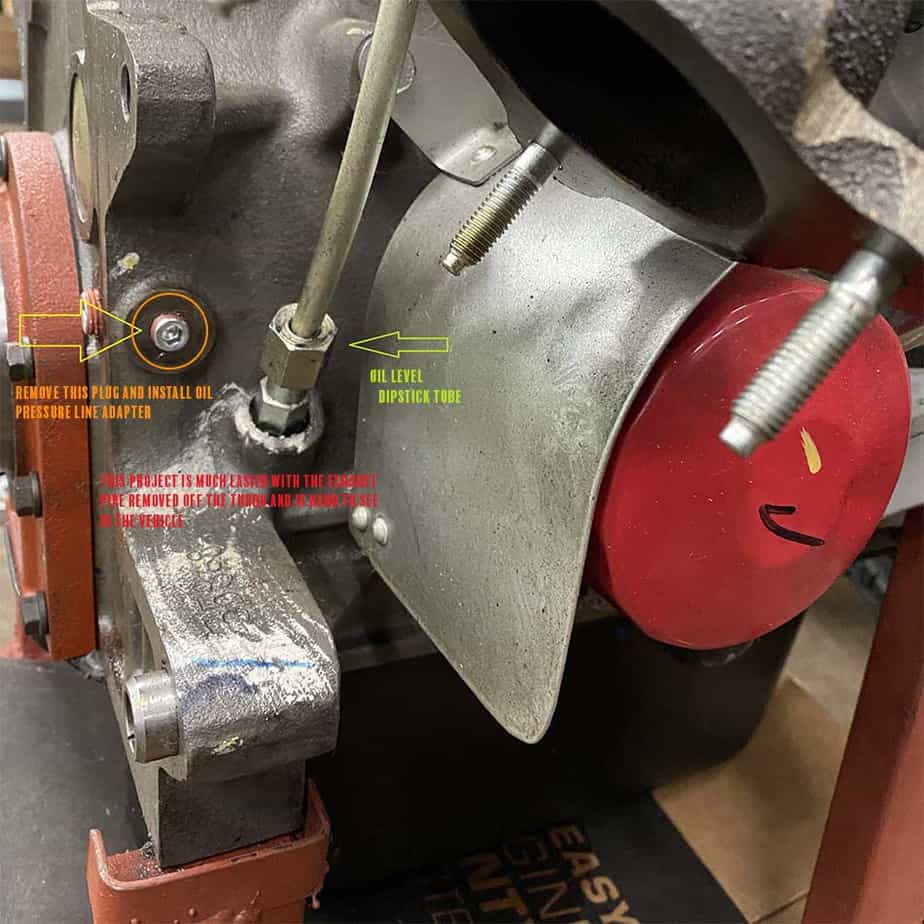

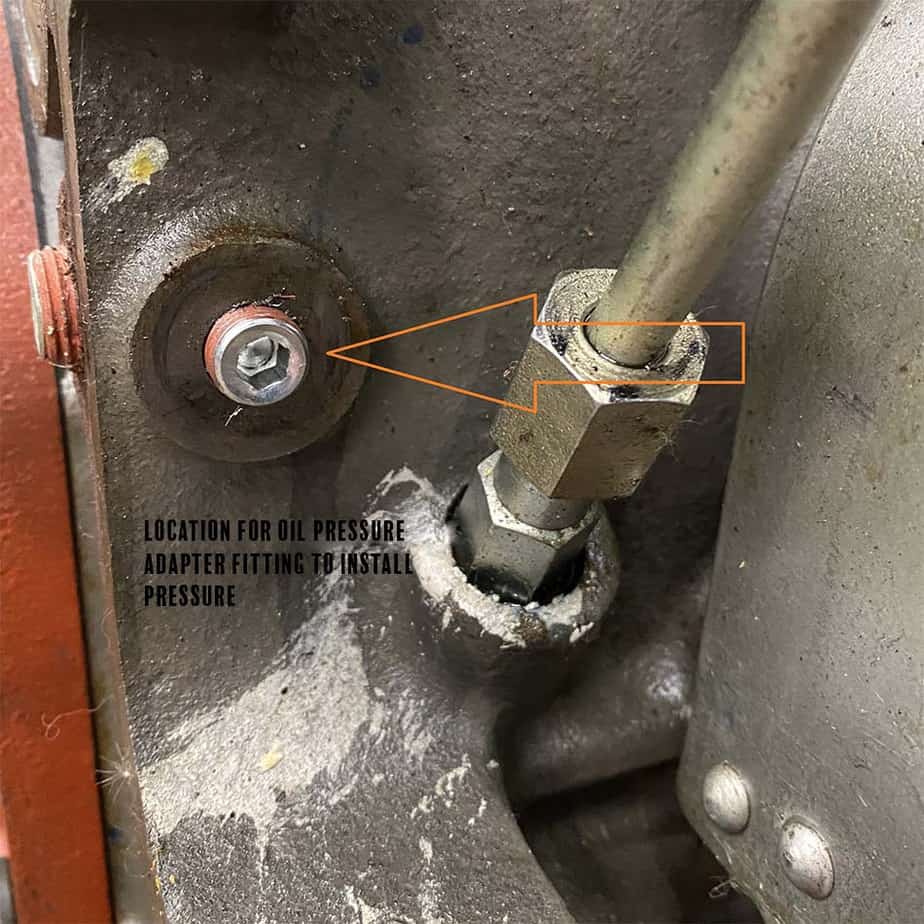

Oil – 1 port available for oil pressure, located on the passenger side of the engine block towards the rear, we found this much easier to change with the exhaust pipe removed from the turbo. Remove plug and install Adapter fitting. Then use Autometer supplied parts & instructions You will lose a bit of oil, be sure to check your oil level once completed.

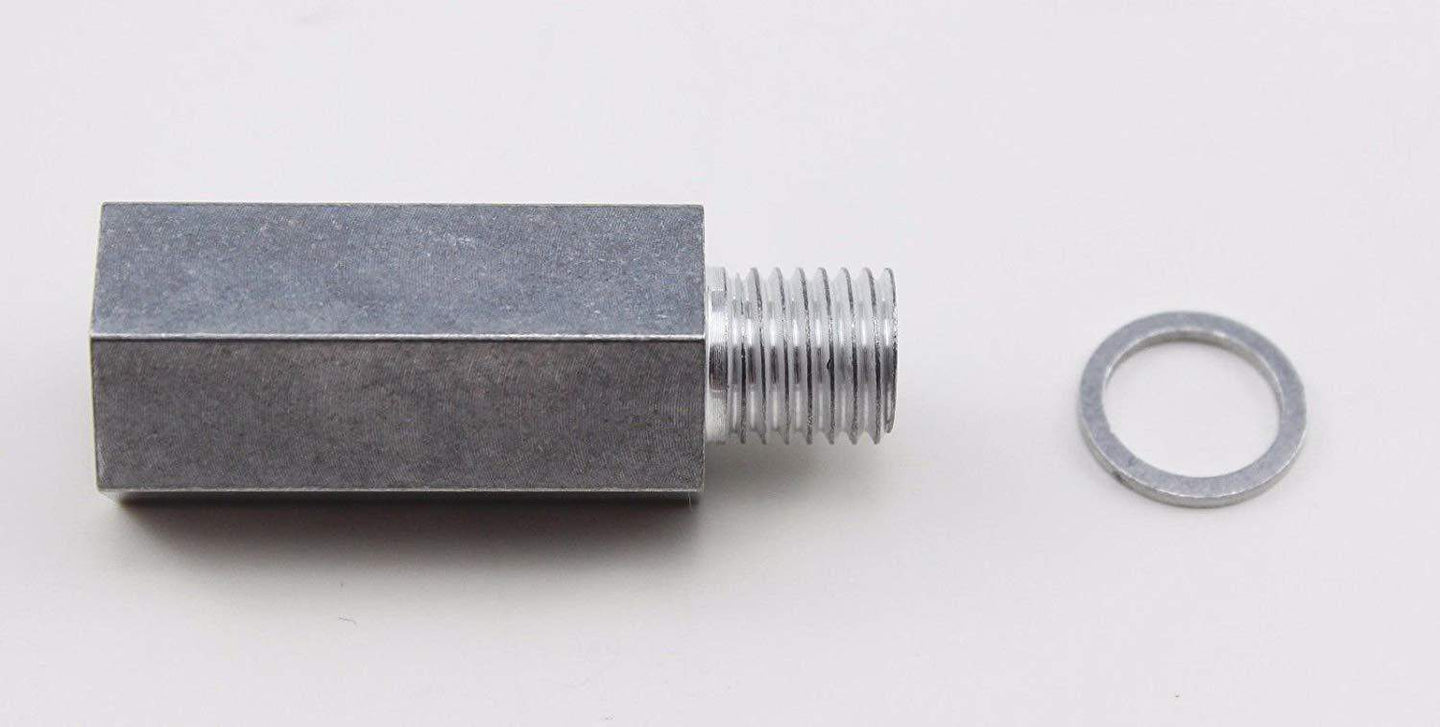

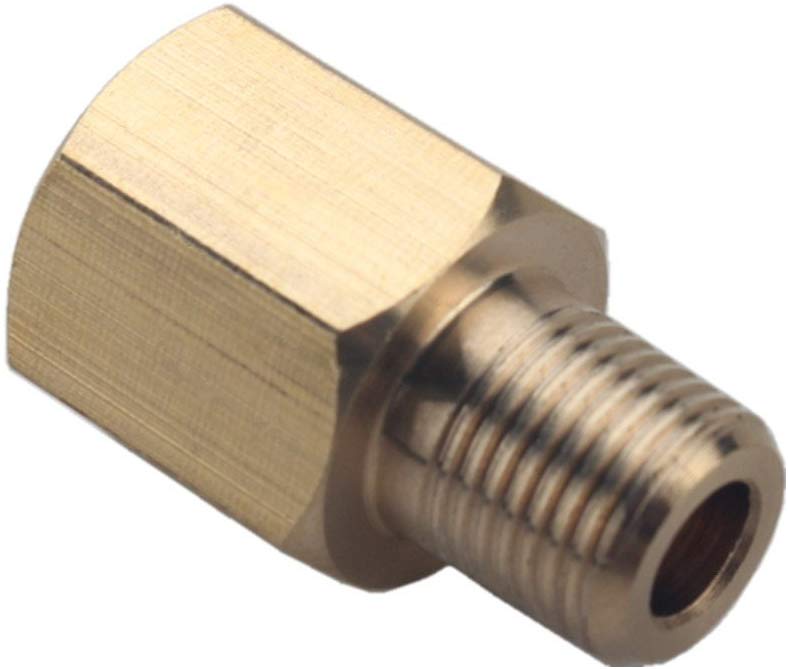

Voltage – Follow Instructions supplied by AutoMeter Kit contains: Gauges, Oil & Coolant fitting adapter

 If you don’t find what you are looking for here or in any of our other listings feel free to contact us, info@dieselfreak.com or 989.748.4145
