Product Description

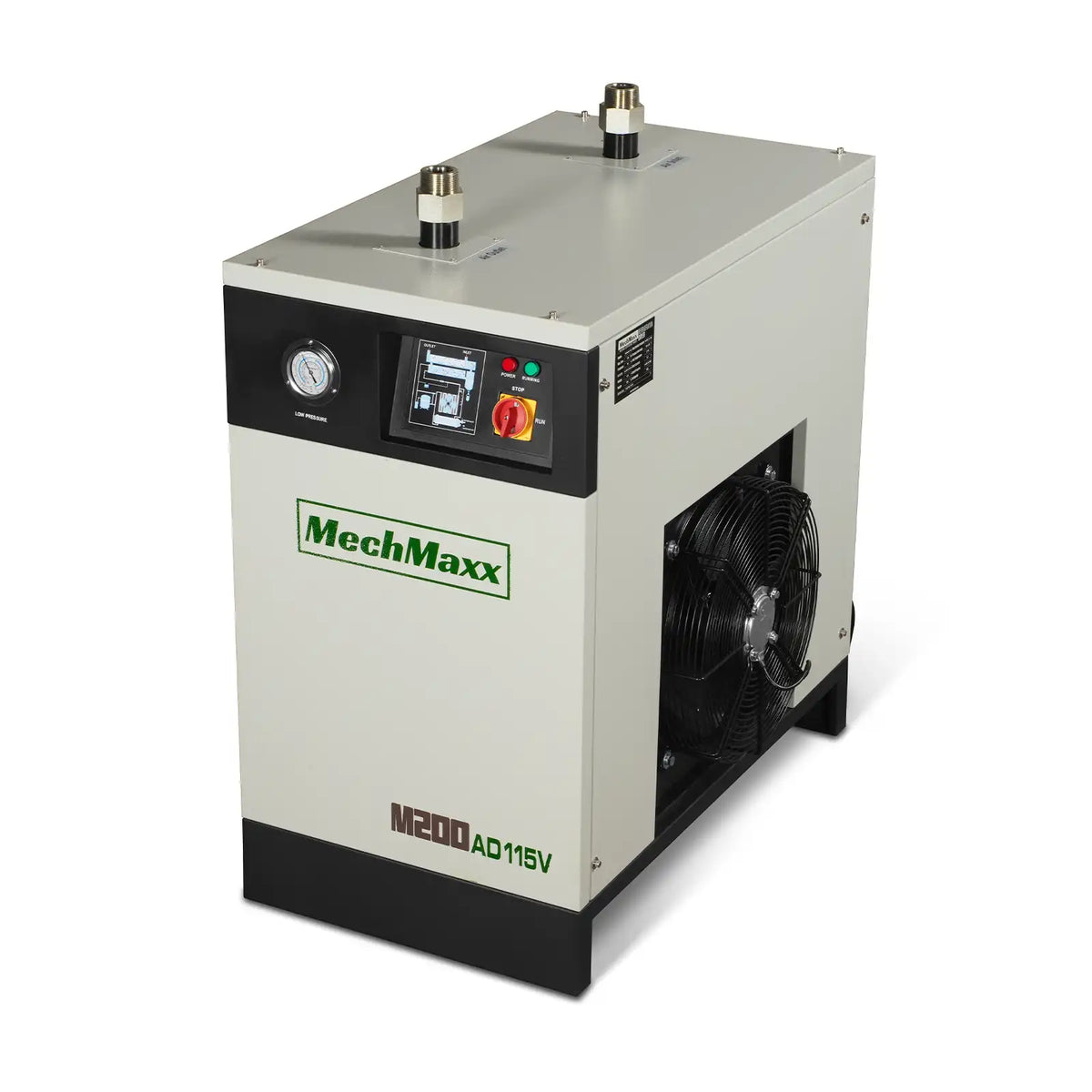

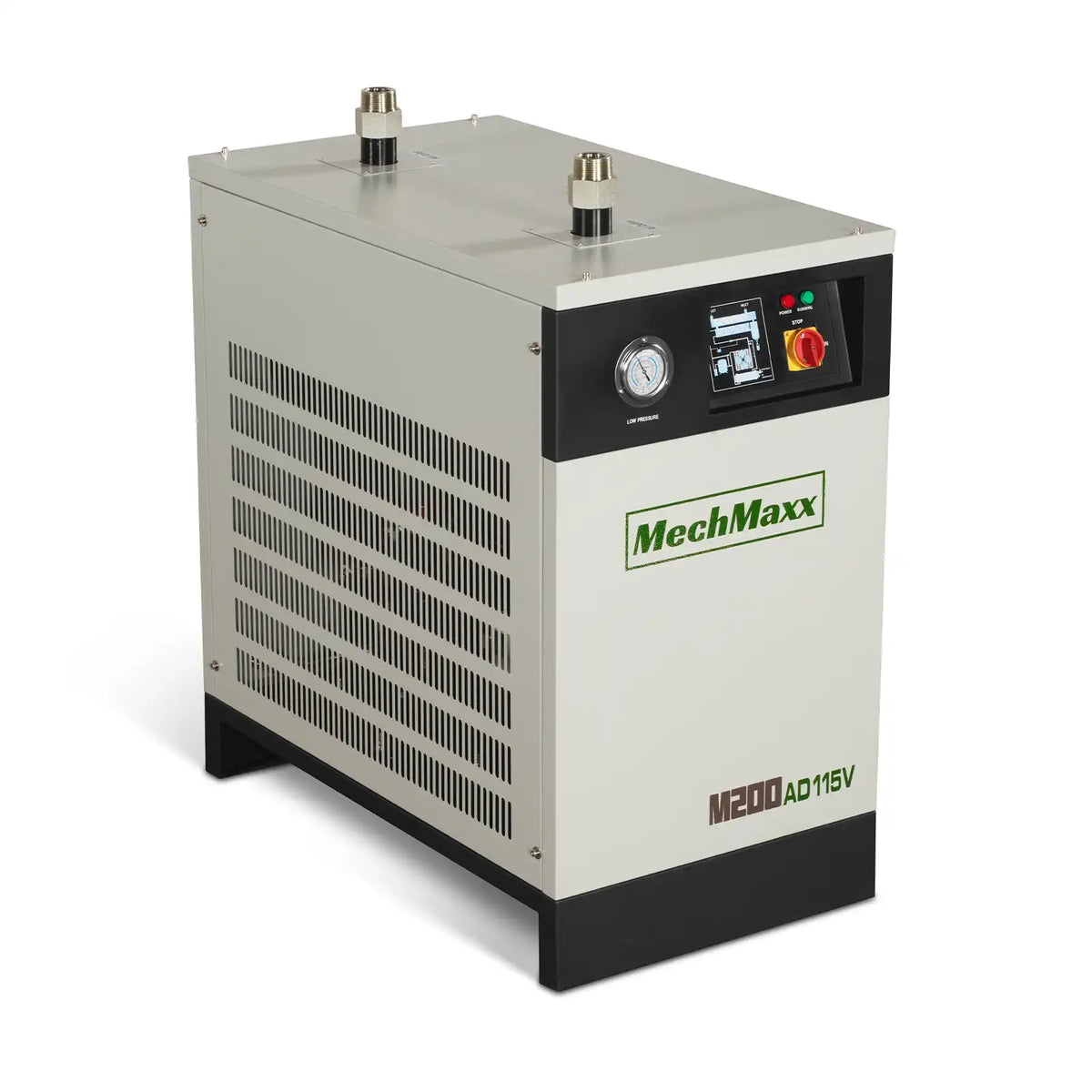

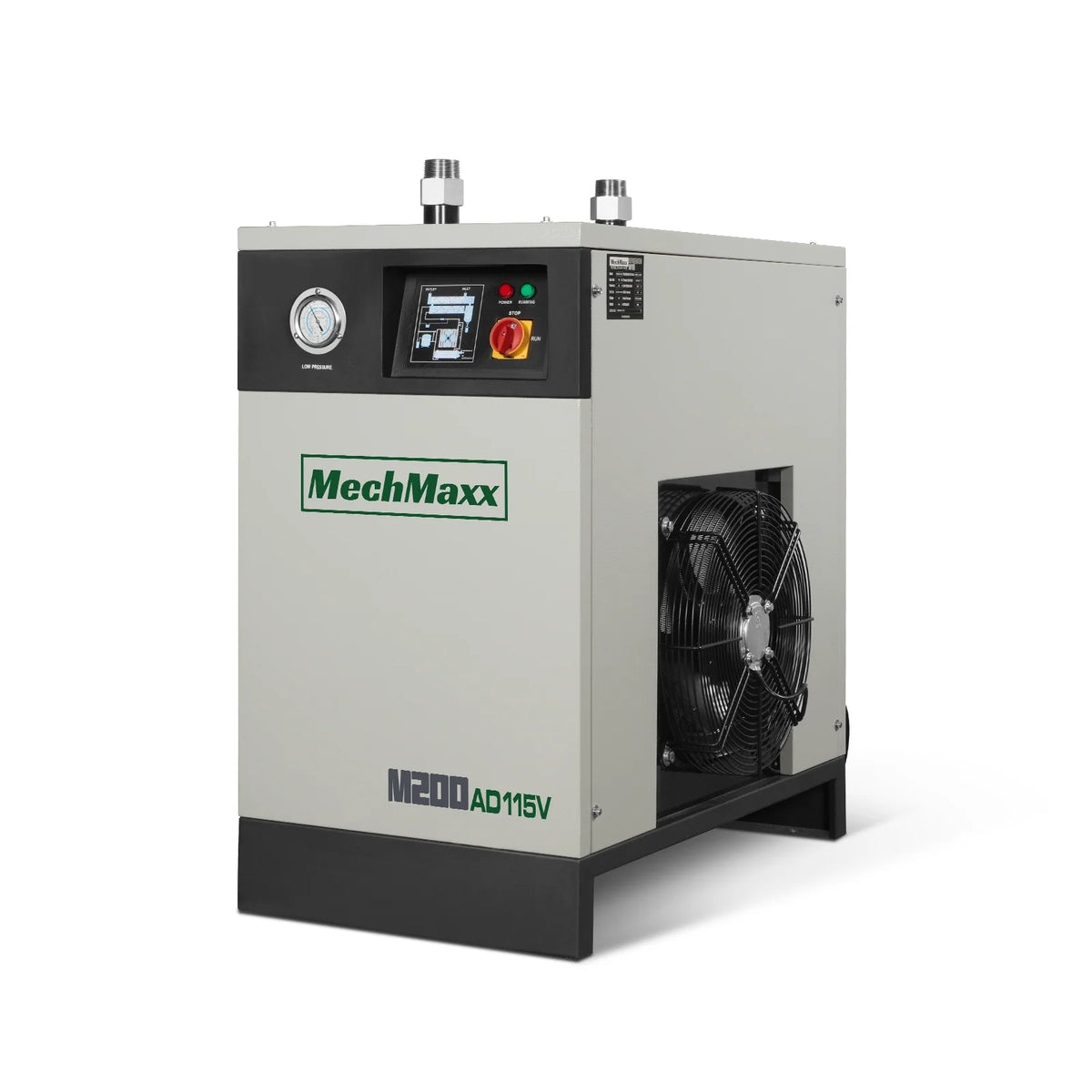

Model M200AD115V
Voltage 115V 1PH 60HZ
Max Flow 196CFM
Rated Pressure 116 PSI / 0.8MPa
Max Working Pressure 145 PSI / 1.0MPa
Compressor Power 1.2KW
Max Inlet Temperature ≤176℉
Pressure Dew Point 35.6℉ ~ 50℉
Refrigerant R410a

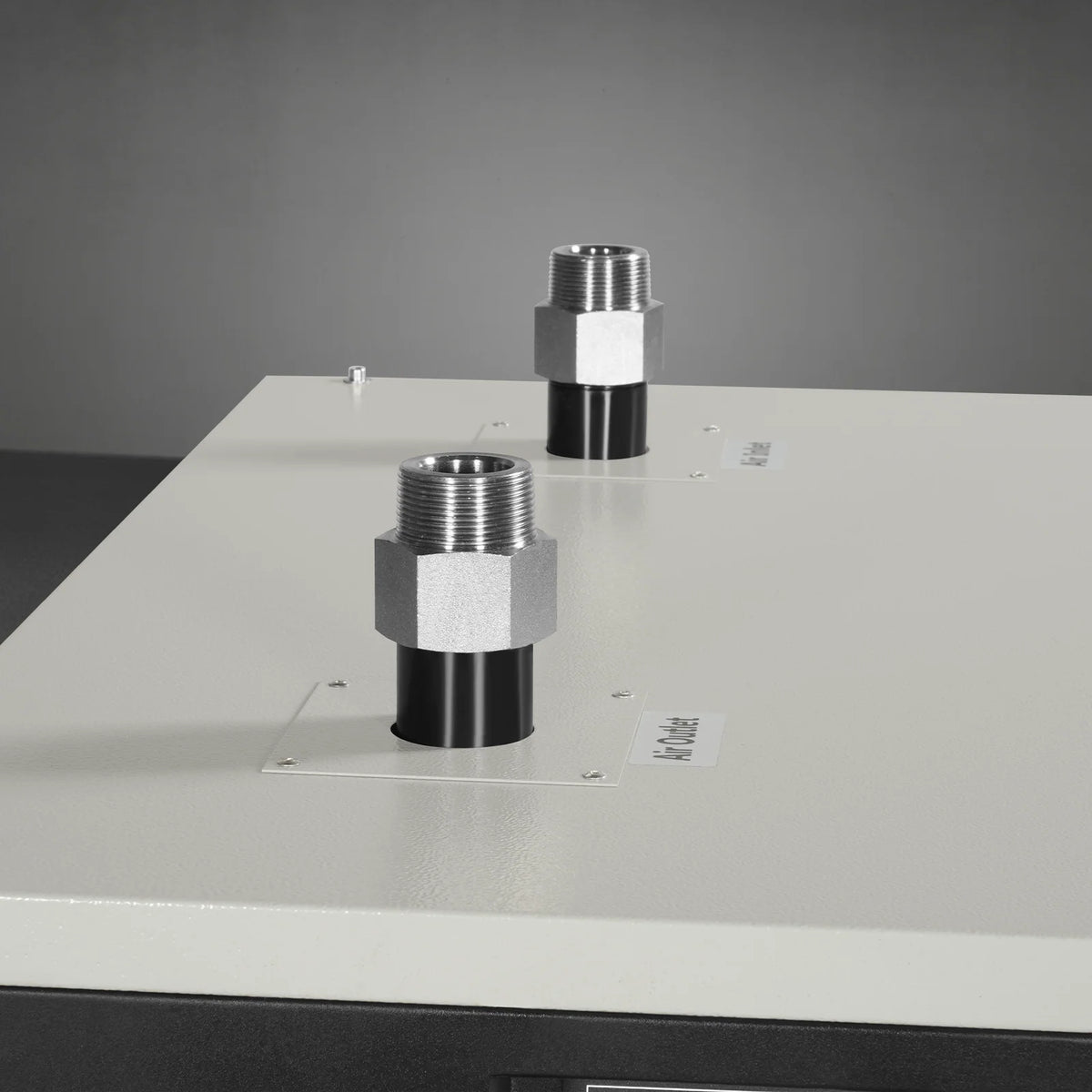

Air Inlet Thread 1-1/2"NPT
Air Outlet Thread 1-1/2"NPT
Machine Size: 19.7 x 35.8 x 34.6"
Packing Size: 25.6 x 38.6 x 44.9"
N.W.:/ G.W.: 211/306LBS

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
