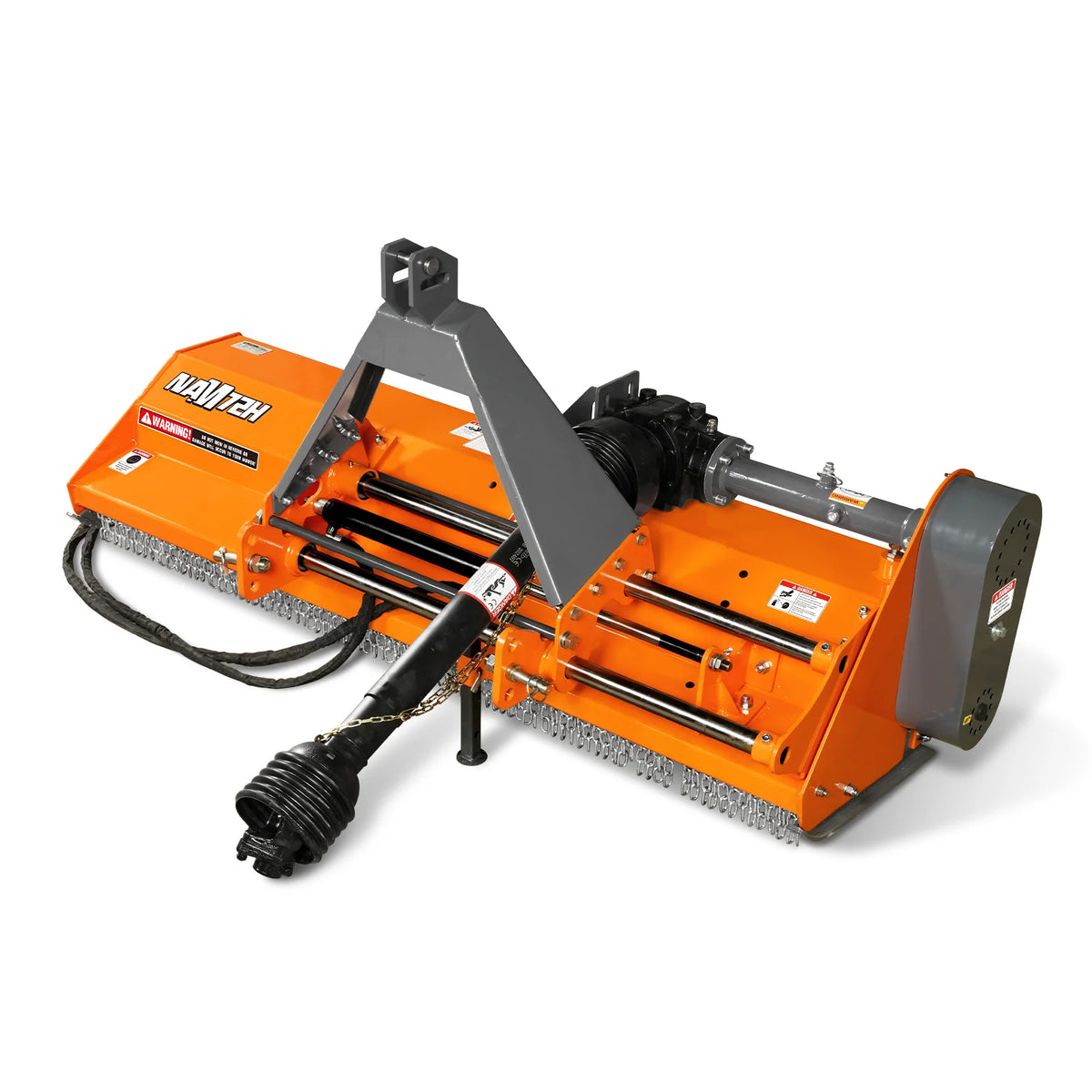

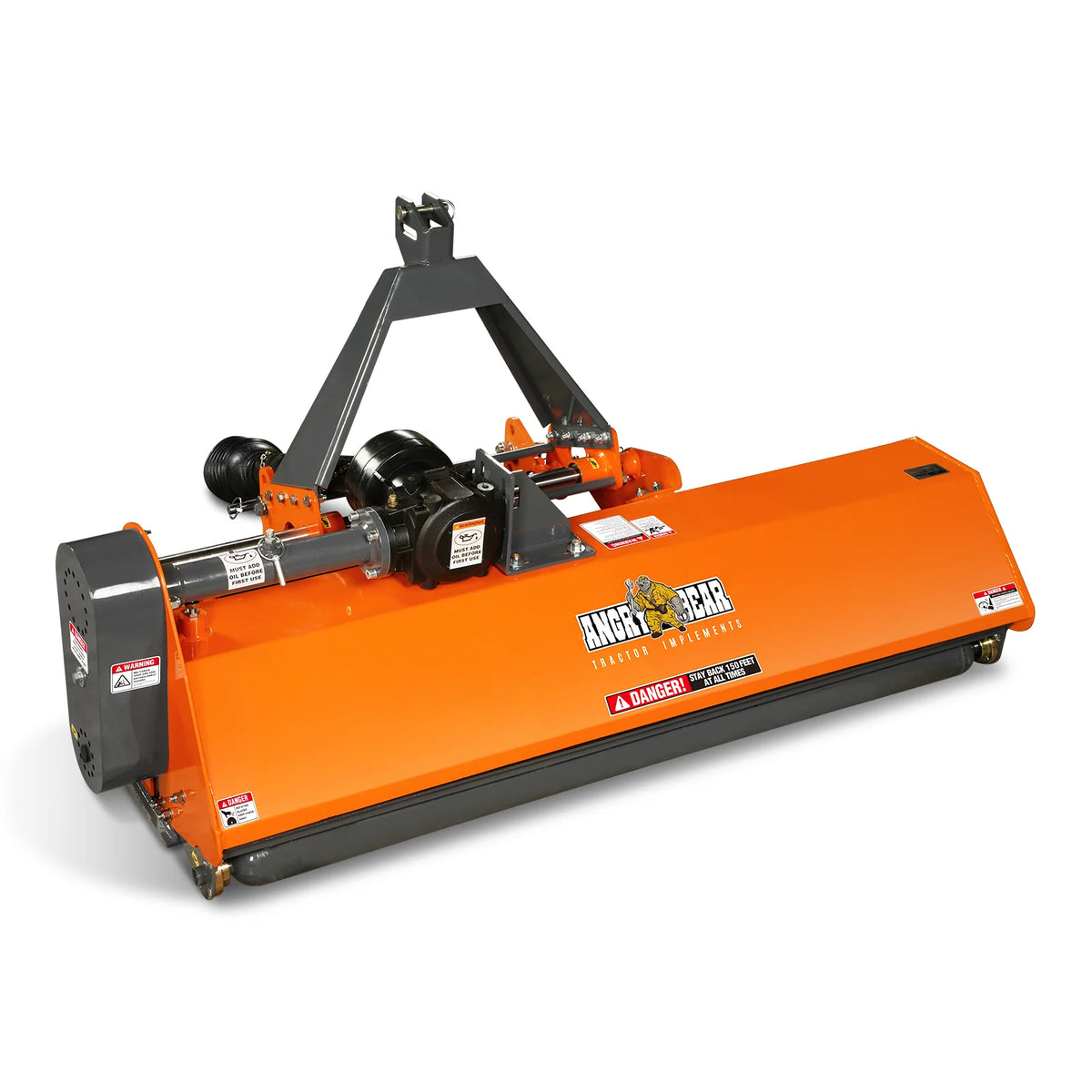

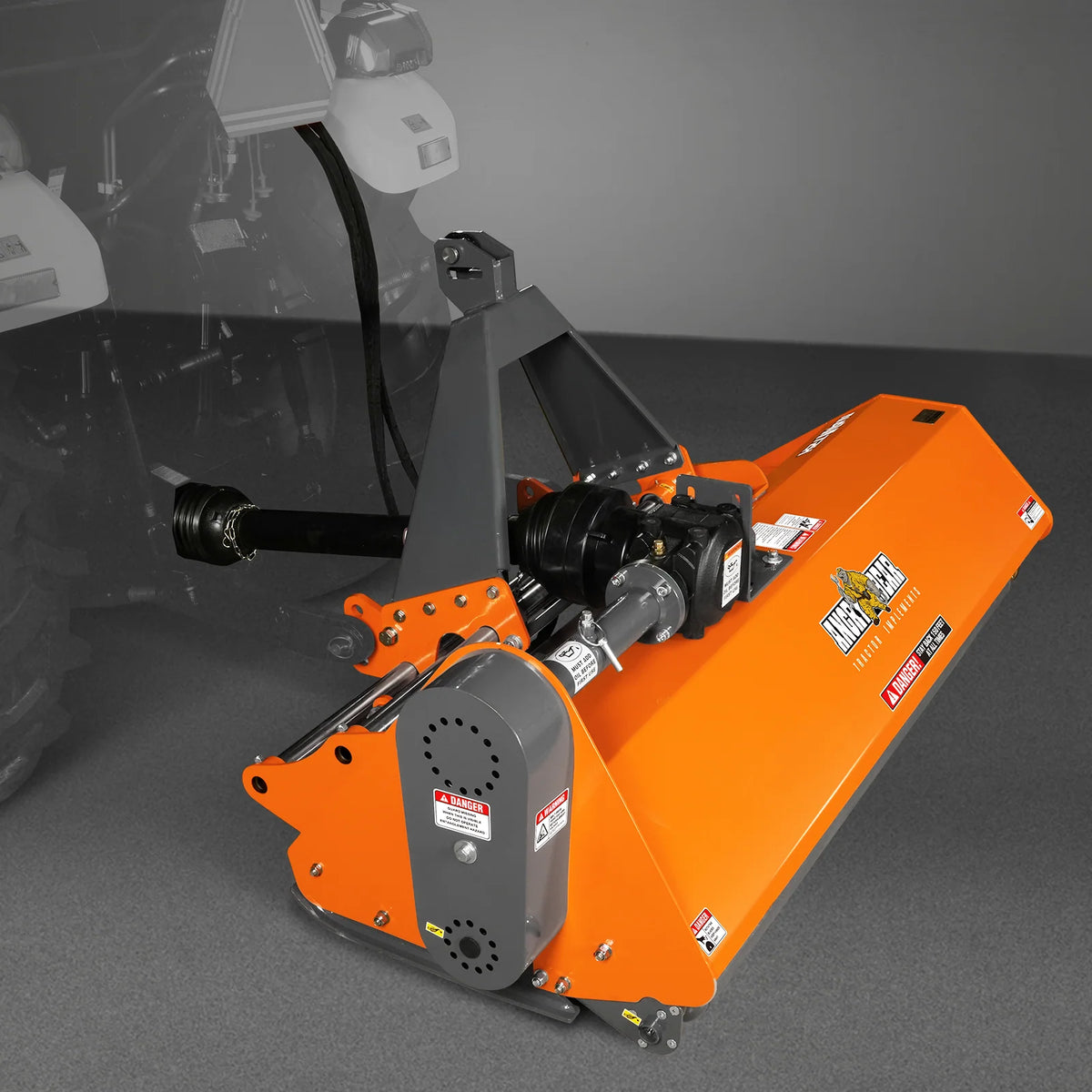

Product Description

Engine Power Required 45-85HP Number Of Belts 4
Working Width 72in Belt Size V Belt 17 X 991

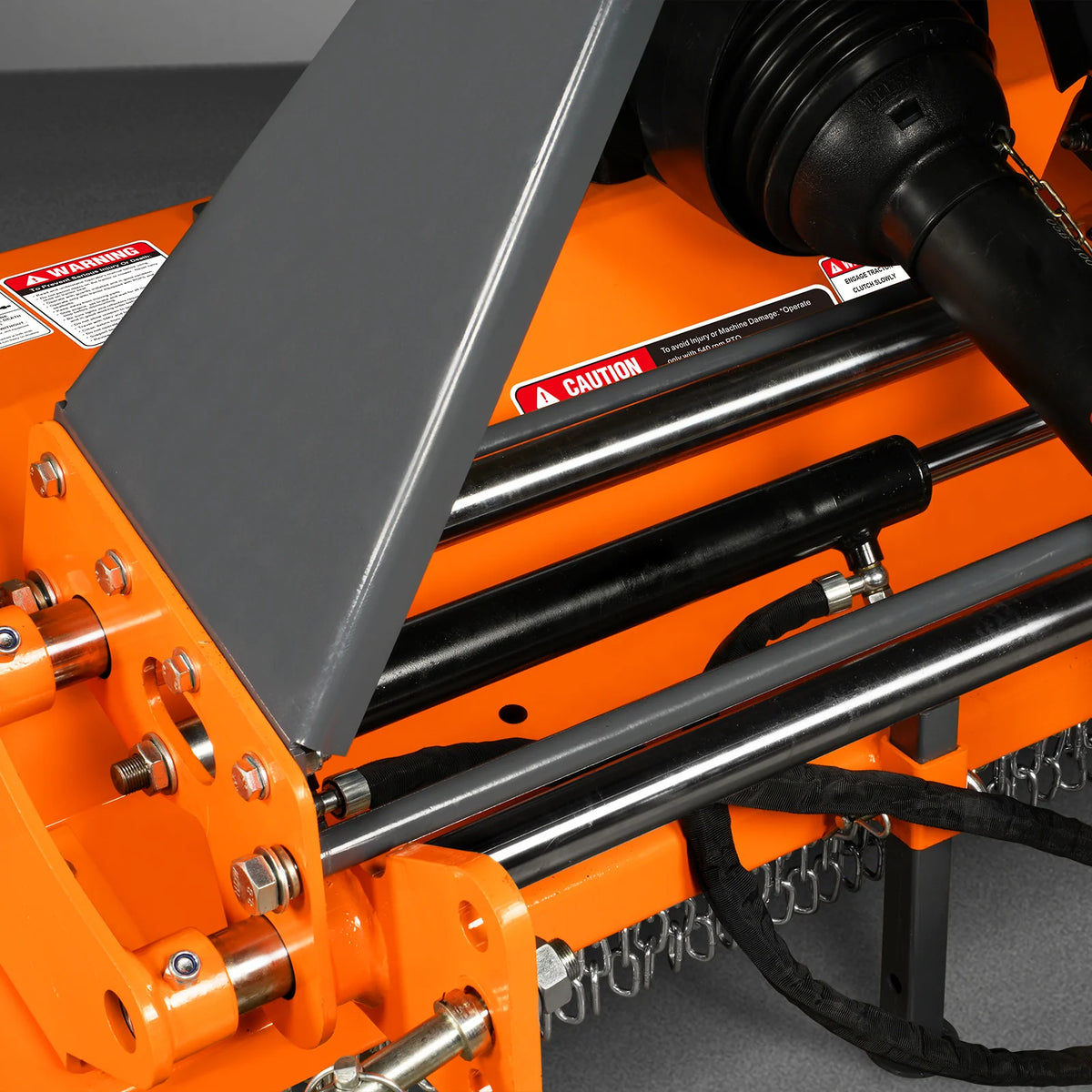

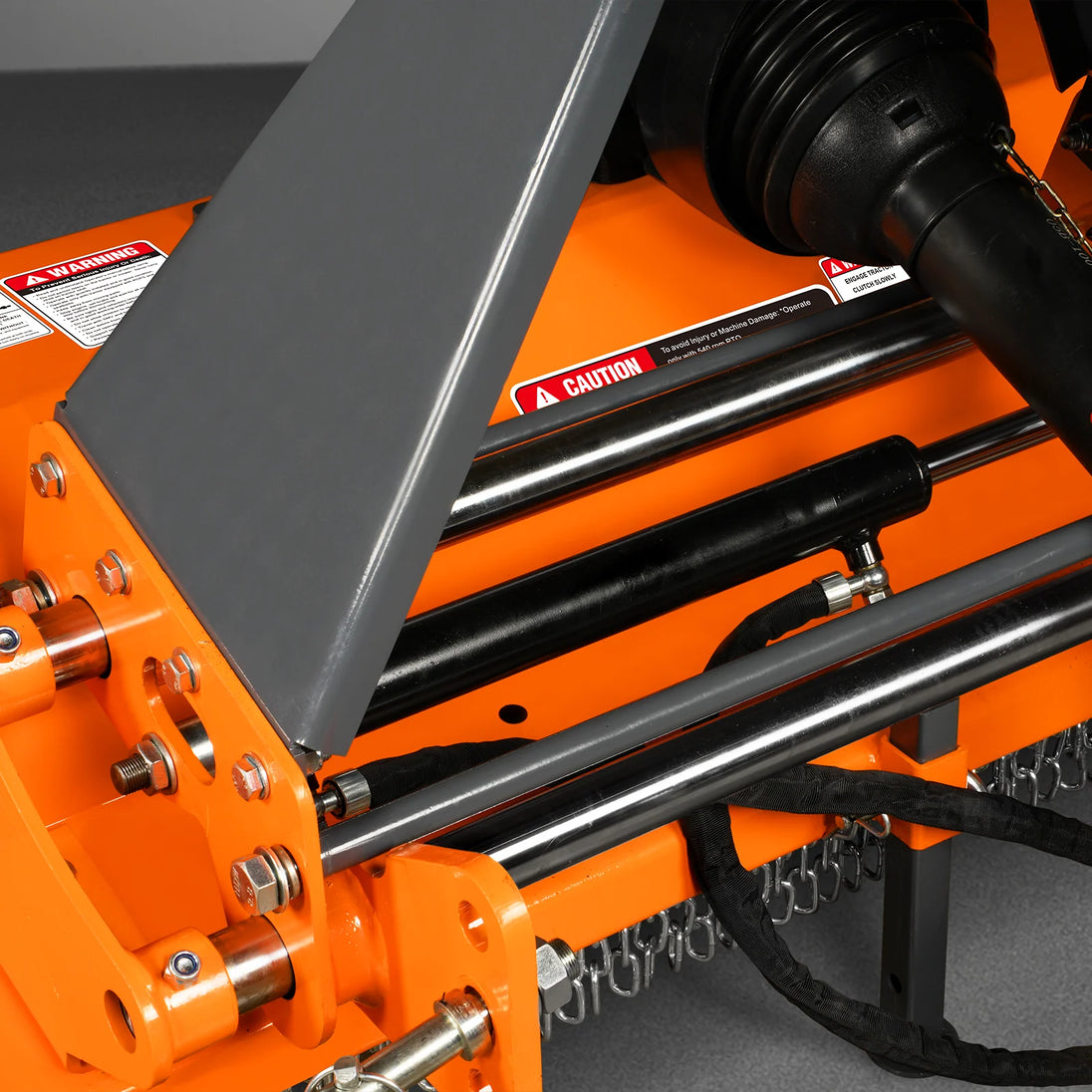

Hydraulic Side Shift 8in(Left Or Right) Drive Belt Tensioner Yes
Overall Width 78in Deck Thickness 0.16in
Blade Ground Clearance 0.6in-2in  Side Plate Thickness 0.25in
Max. Cutting Diameter

Depends On The Type Of Grass

PTO Shaft RPM 540 RPM

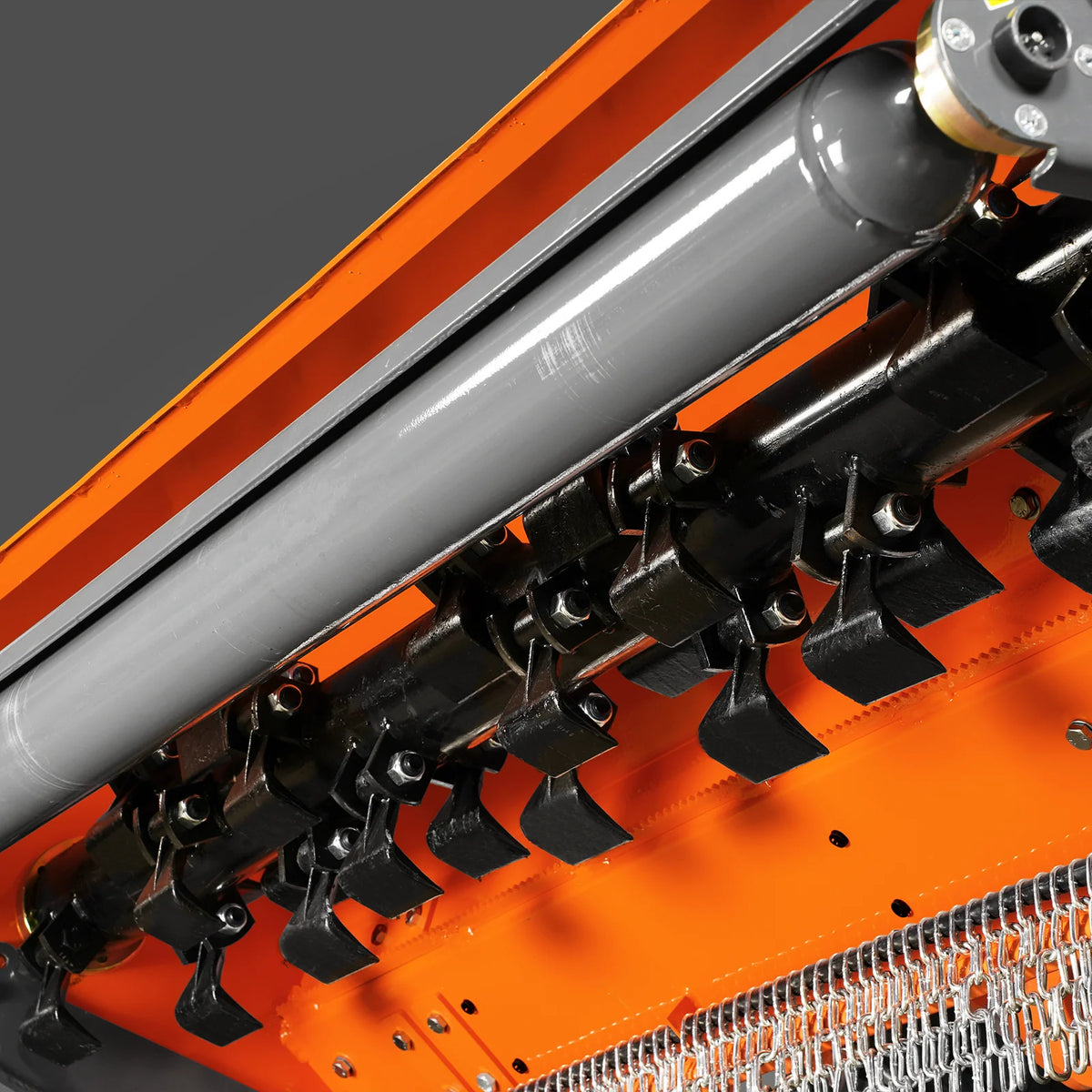

Number Of Blades 28 Driveline Shaft Length T6-LF-39" with shear bolt ;39"-49"
Blade Type Hammer Spline End 1 3/8" Z6

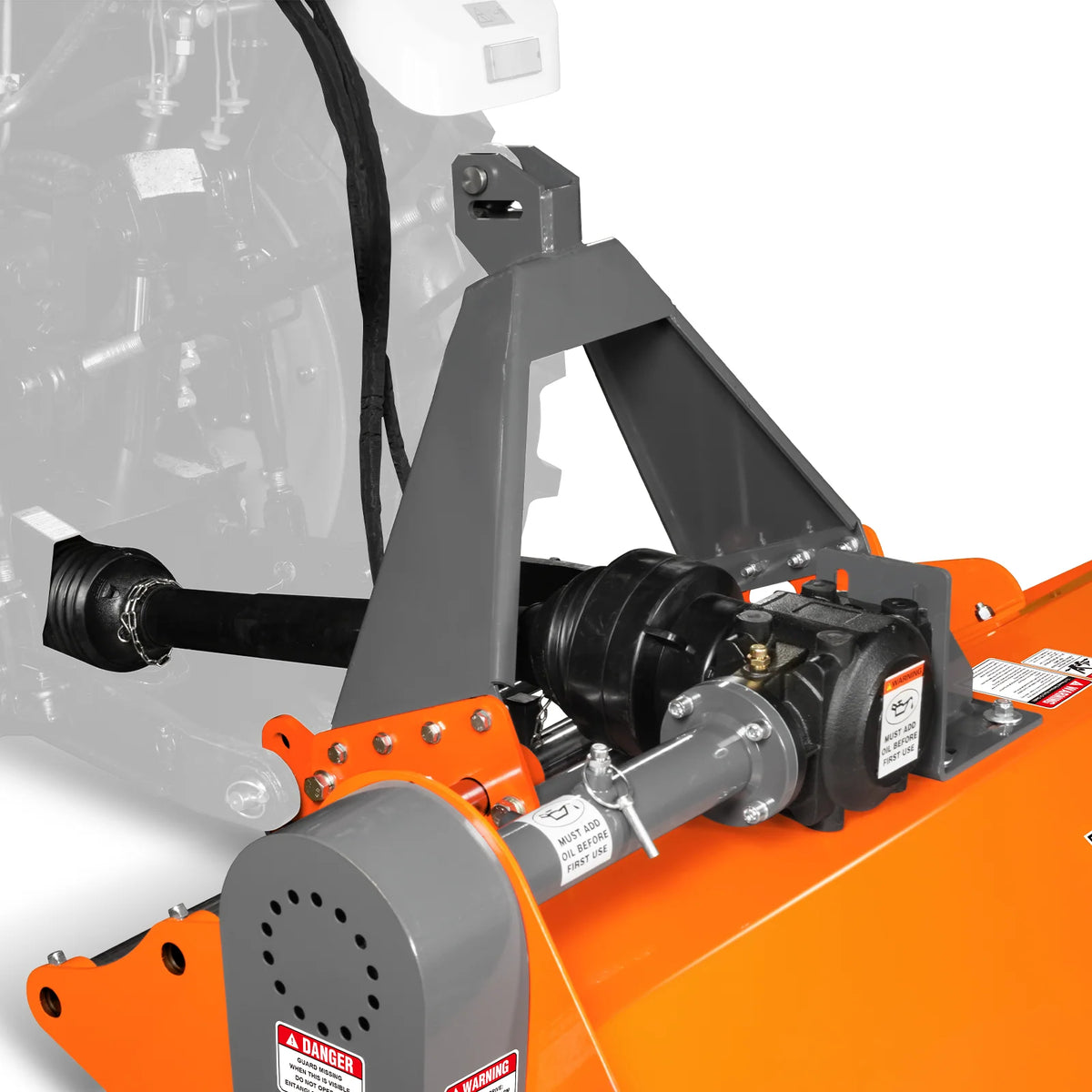

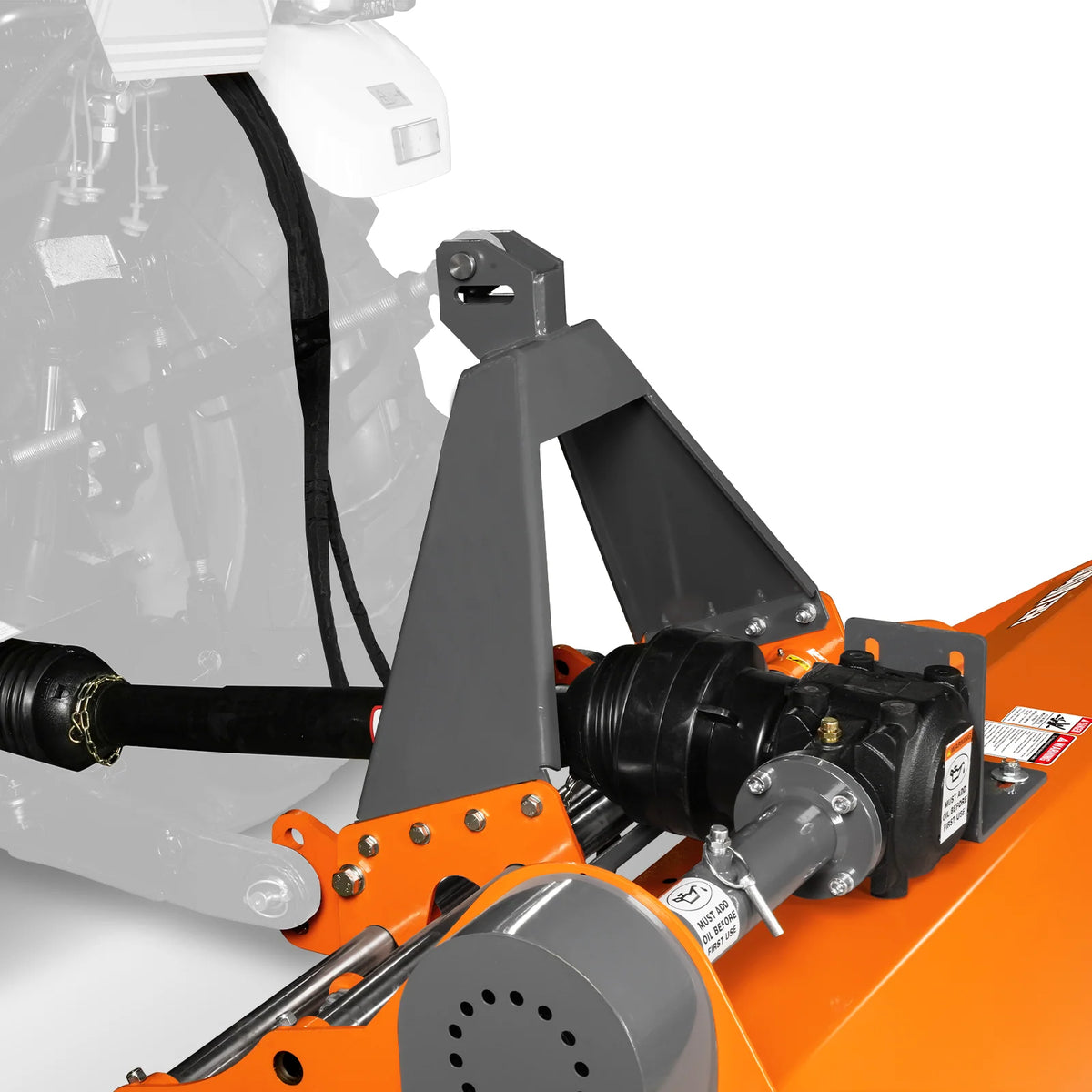

Blade Weight 1.8lbs 3-Point Hitch CAT 1
Blade (Tines) Material Cast Steel Gearbox Oil Type 85W-90
Rotor Bearing SKF bearing Dimensions (L x W x H)  82 x 34 x 26in
Roller Diameter 4in Finsh  Powder Coat Paint  Galvanized Steel
Rotor Diameter 5in Warranty 1 year
Rotor Swing Diameter 14in Weight (N.W./G.W.) 745/871 lbs
Drive Type Belt drive

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
