Product Description

Working Width 72 in Pulley Bearing NSK Bearing

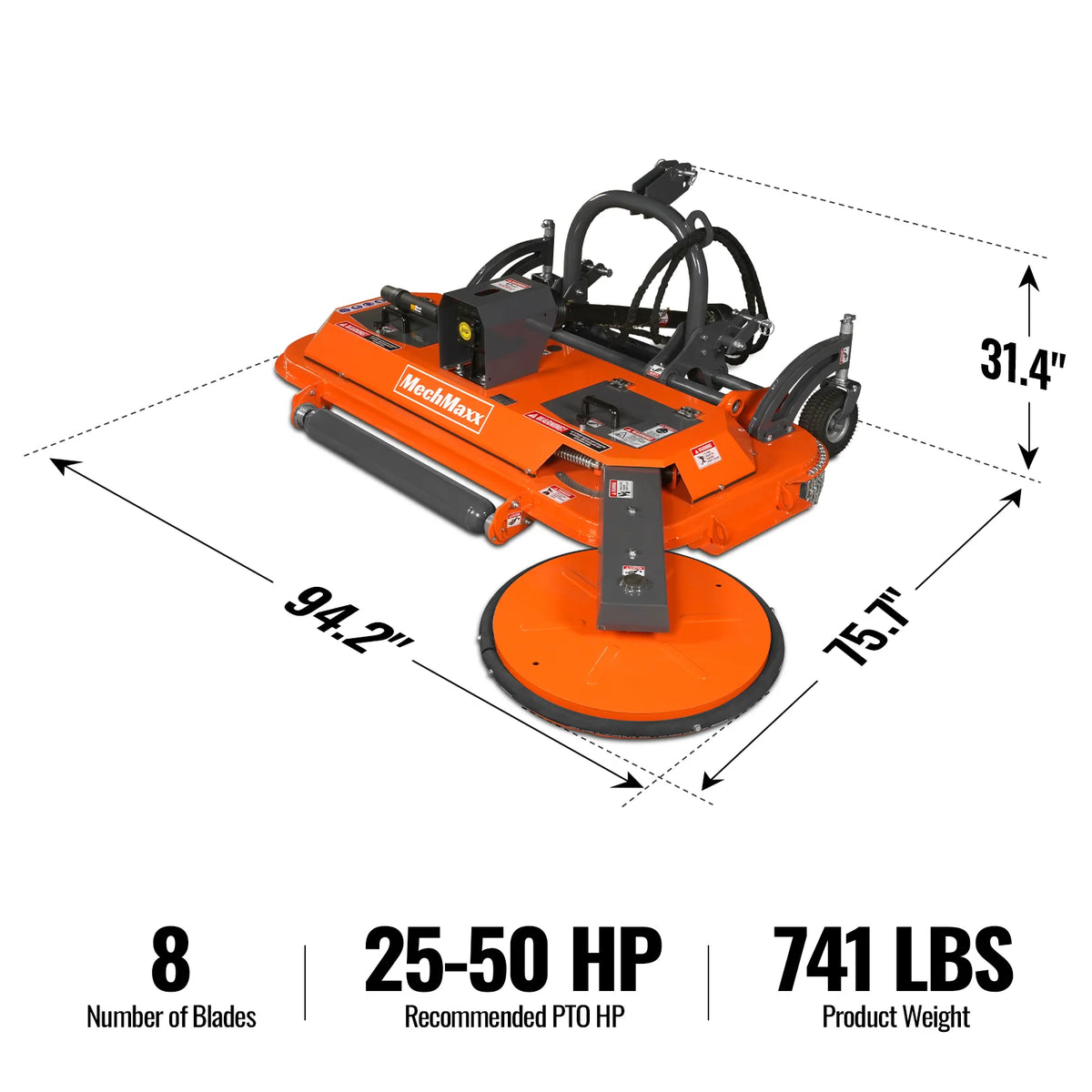

Overall Dimensions (L×W×H) 94.2 x 75.7 x 31.4 in Drive Type Belt Driven

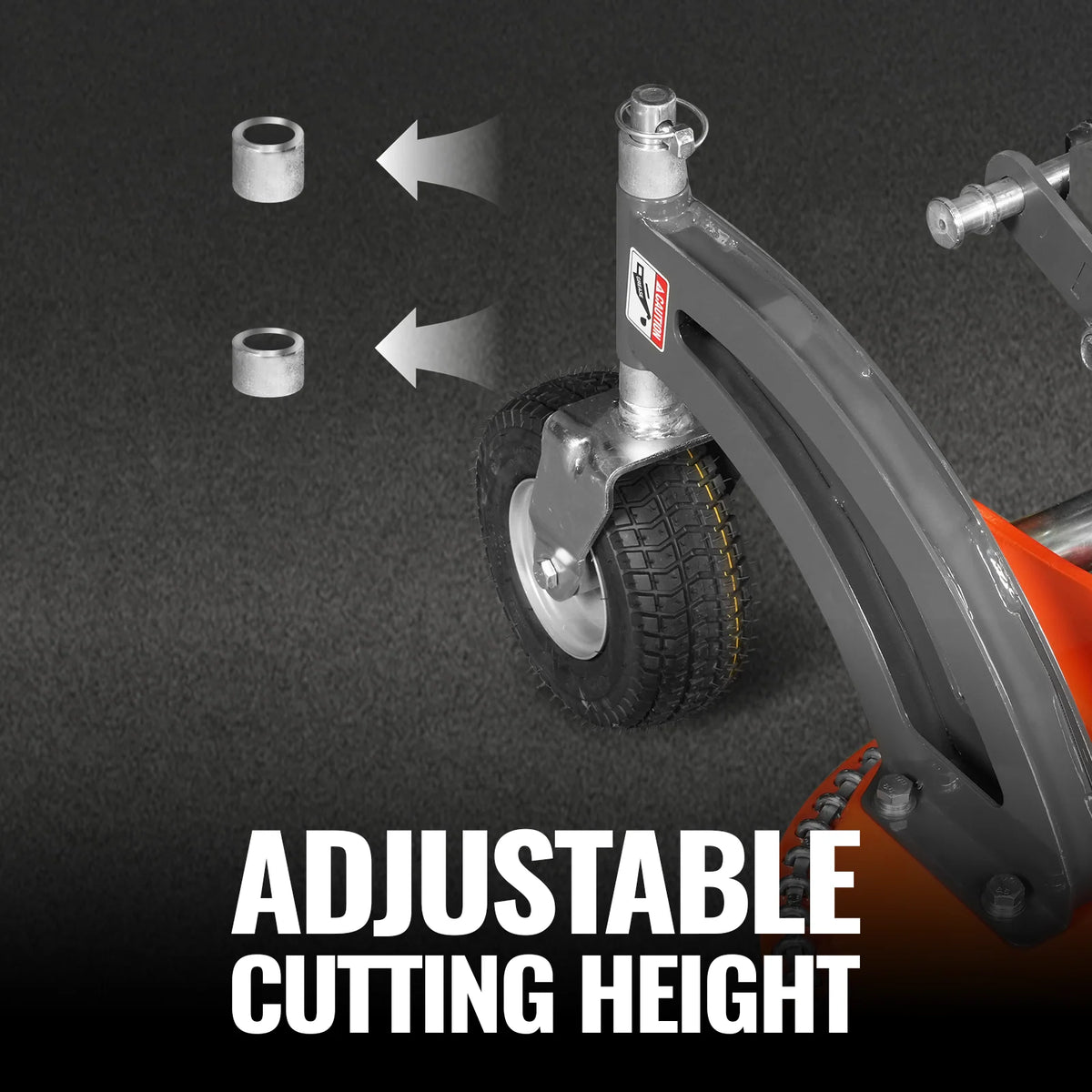

Cutting Height 0.4-3 in Number Of Belts 3
Max. Cutting Diameter Depends On The Type Of Grass Wheel Type Pneumatic Wheel, Tubeless, 4PR

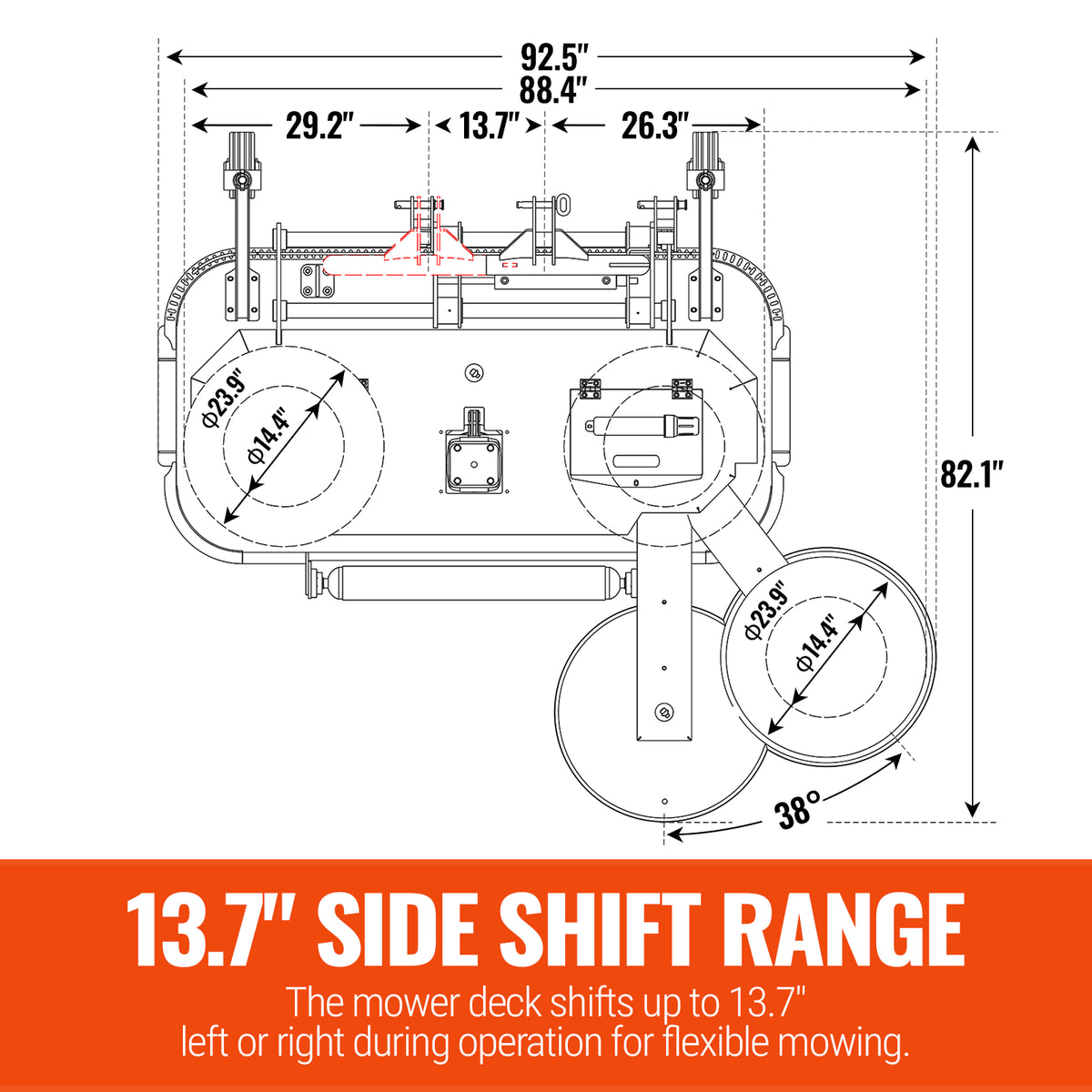

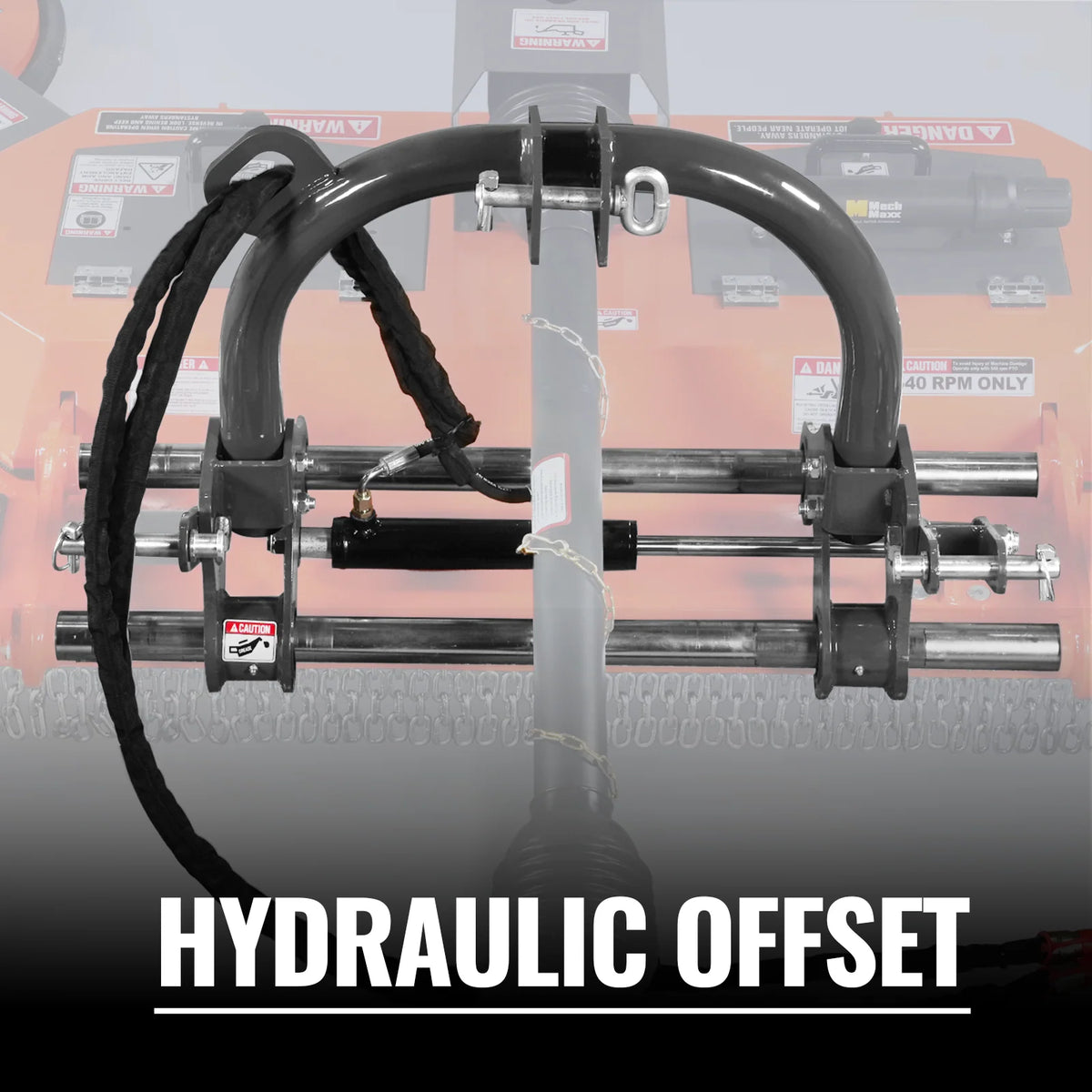

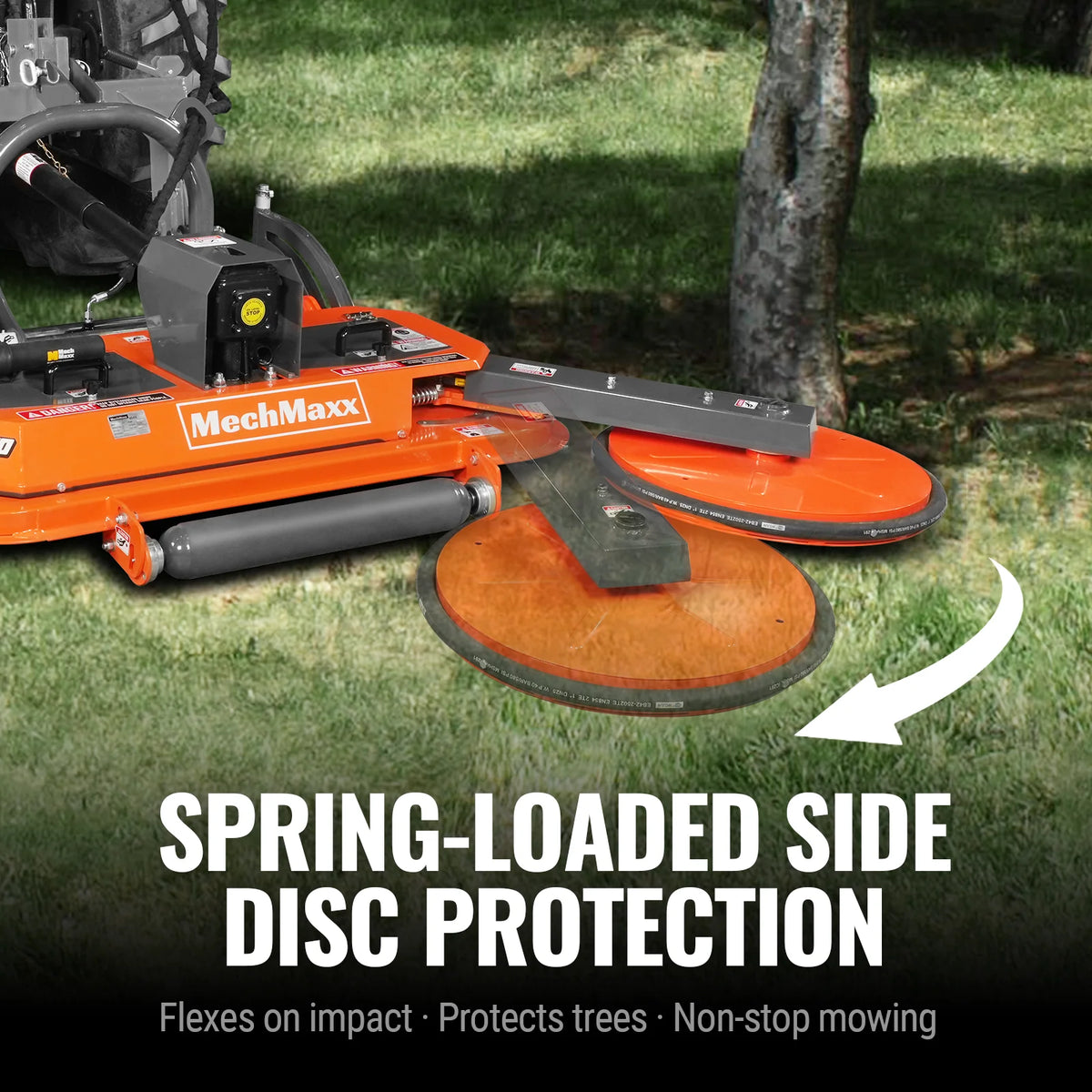

Offset Capability Hydraulic Offset, 13.7 in Left / Right from Center Side Disc Mower Diameter 25.2 in

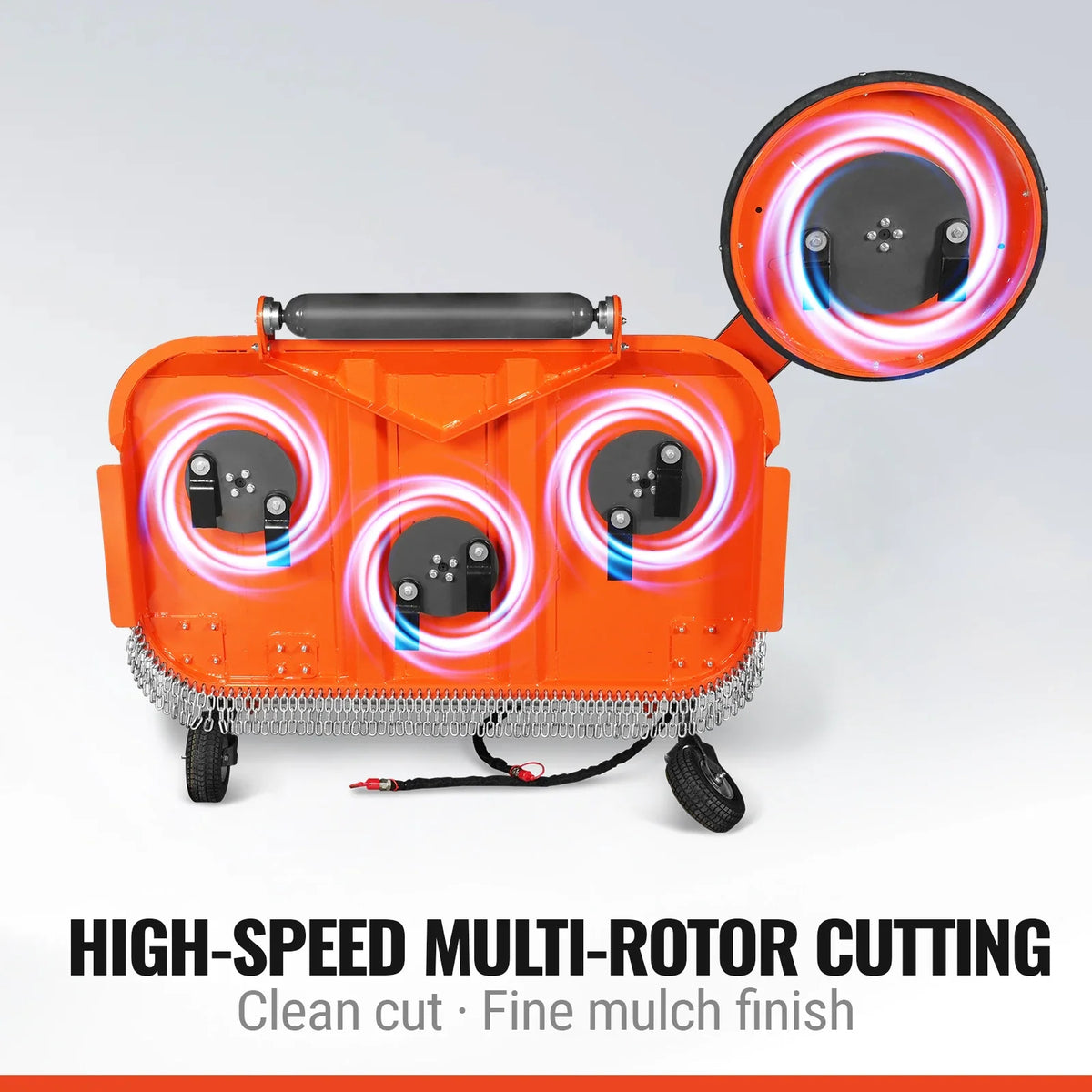

Number of Rotors 4 PTO Shaft Included Yes
Number of Blades 8 PTO Shaft Series 4 PTO Shaft with Shear Bolt, 1-3/8" × 6-Spline (Both Ends)
Blade Arrangement 2 Blades per Rotor Tractor PTO Speed 540 RPM
Blade Type Heat-Treated 60Si2Mn Steel Recommended PTO HP 25-50 HP
Blade Size 2.36 x 7.13 x 0.9 in 3 Point Hitch Cat.1
Blade Speed @ 540 PTO RPM 2696 RPM Quick Hitch Compatibility Cat.1 Quick Hitch Compatible
Main Gearbox Cast Iron Oil-Bath Gearbox, Gear Ratio 1:2.83 Packing Size (L×W×H) 77 x 47 x 26 in
Gearbox Lubrication SAE 80W-90, Approx. 0.5L (0.53 qt)NOTE: SHIPPED WITHOUT OIL. Weight (N.W/G.W.) 741/871 lbs

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.

Questions? Call or text (888) 608-7866 or email johnm@summitsourceusa.com.
