Product Description

Voltage 230V 3PH 60HZ(L1+L2+L3,G)
Air Flow Capacity 220CFM

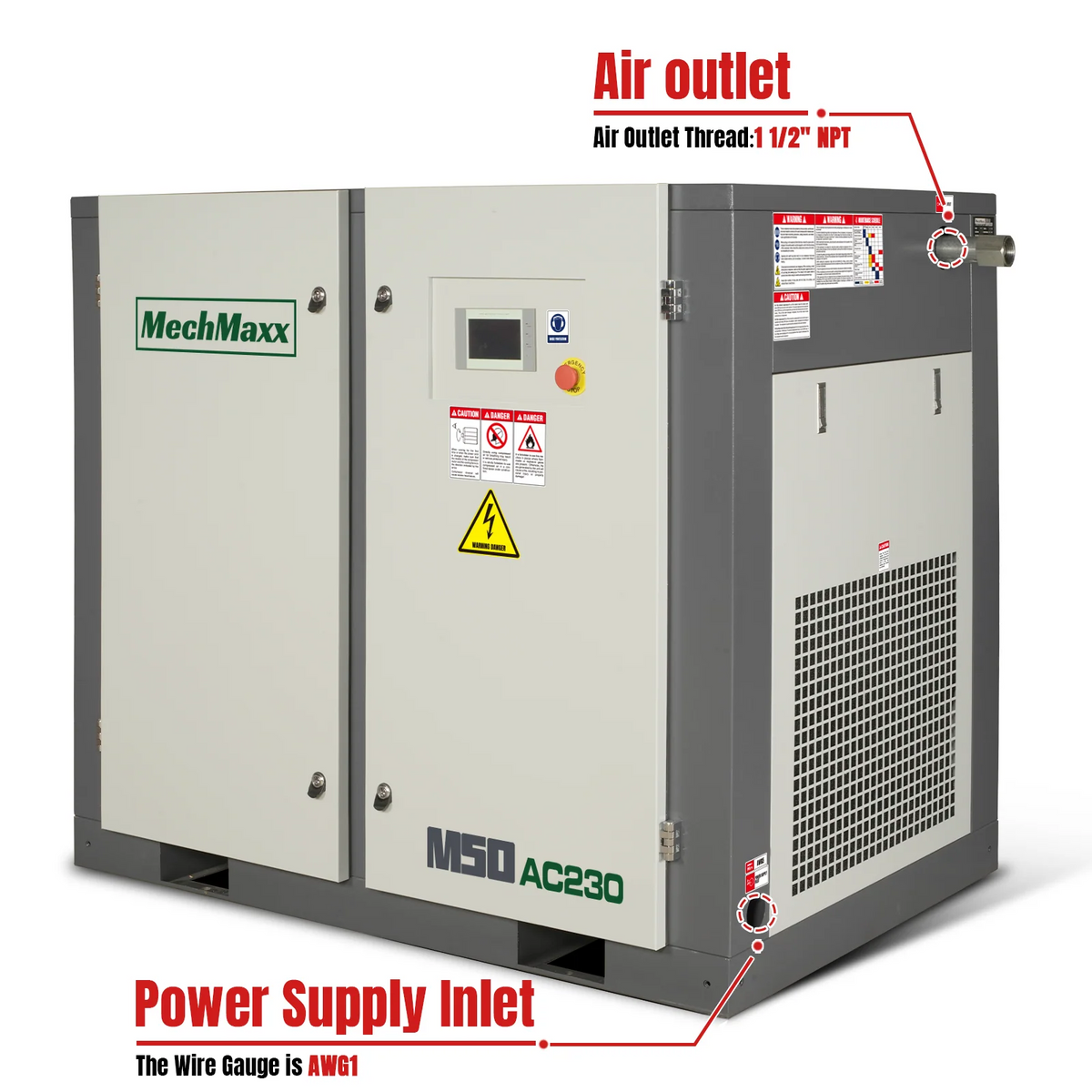

Wire Gauge AWG1
Air Outlet Thread 1-1/2“NPT
Oil Tank Capacity 6.6Gal (25L)
Maximum Current 133.64A
Rated Power 50HP
Starting Method Star-Delta (Wye-Delta) Start
Rated Pressure 116 PSI (0.8 MPa)
Noise Level 65dba
Motor Speed 3540RPM
Oil Type Oil Lubricated
Oil System Splash Lubricated
Recommended Oil Grade S3R46
Oil Sight Glass Yes
Pump Drive Belt Drive
Standard Adaptor 1-1/2" NPT
Machine Size: 59" x 43" x 51.2"
Packing Size: 60.6" x 44" x 57.5"
N.W.:/ G.W.: 1366 lb/1485 lb

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors..
