Product Description

Air Compressor Information
Voltage 230V 3PH 60HZ(L1+L2+L3,G)
Air Flow Capacity 78CFM

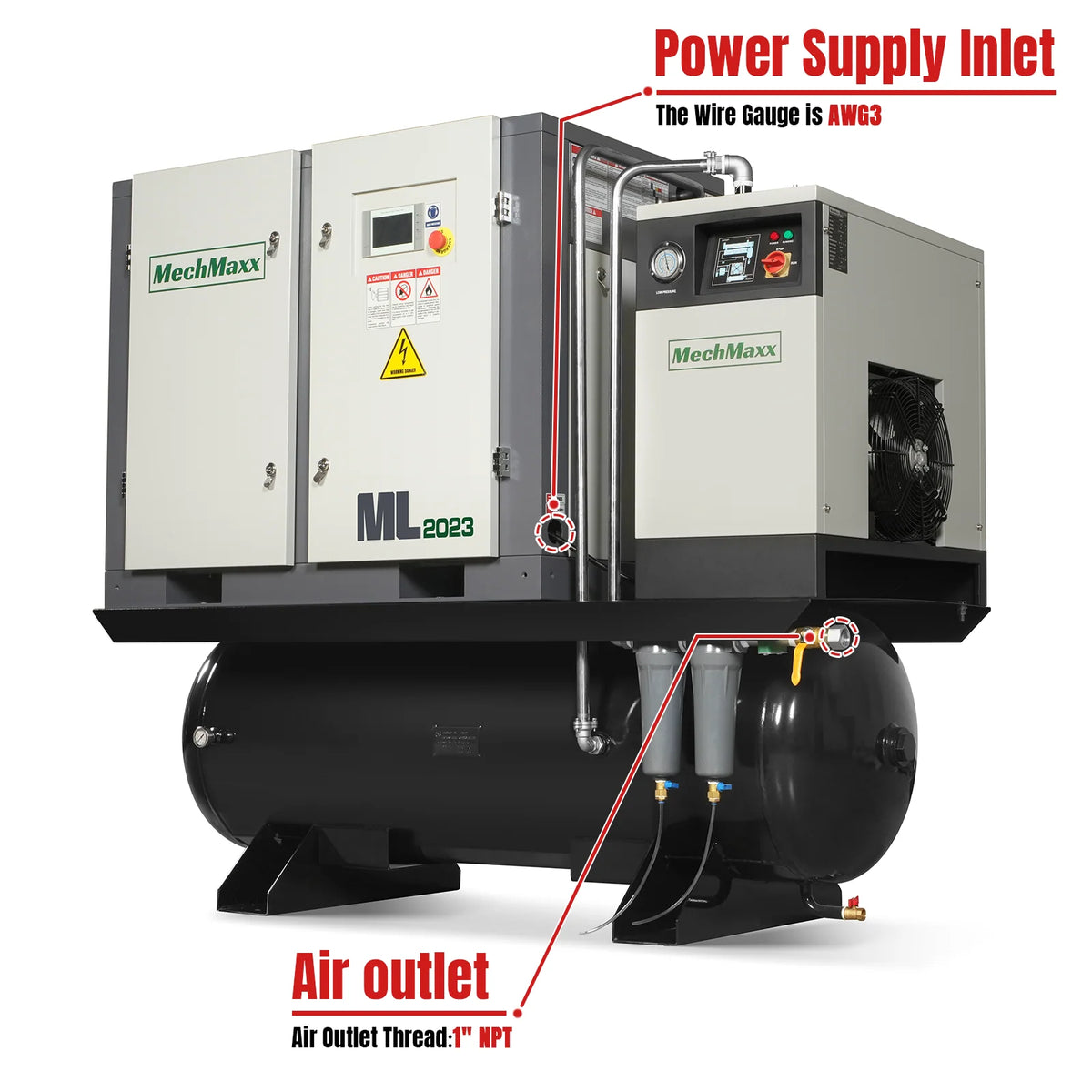

Wire Gauge AWG3
Air Outlet Thread 1"NPT
Oil Tank Capacity 2.64Gal (10L)
Rated Power 20HP

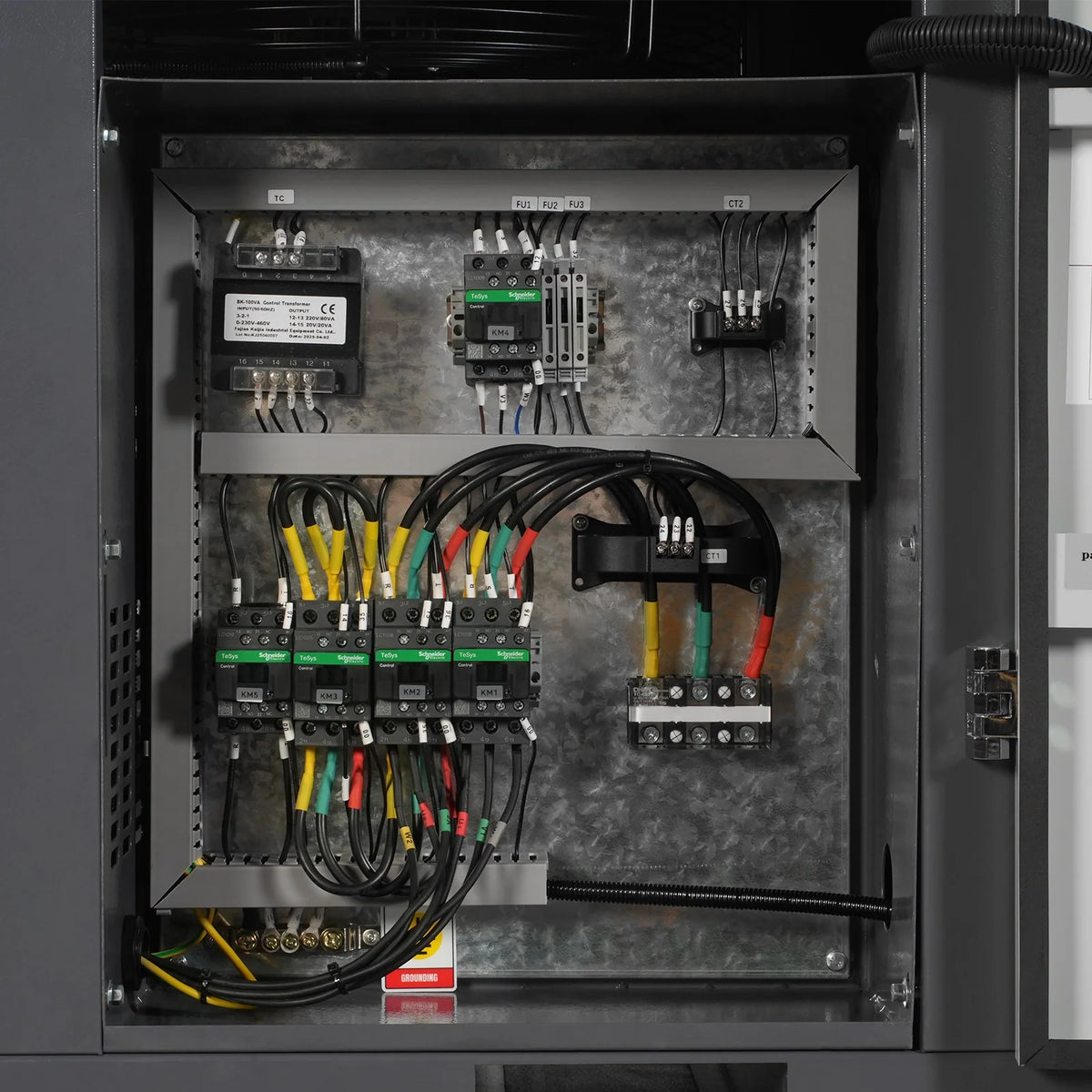

Starting Method Star-Delta (Wye-Delta) Start
Rated Pressure 116 PSI (0.8 MPa)
Noise Level 70dba
Motor Speed 3515RPM
Oil Type Oil Lubricated
Oil System Splash Lubricated
Recommended Oil Grade S3R46
Oil Sight Glass Yes
Air Tank & Refrigerated Air Dryer Information
Working Pressure ≤145PSI/1.0MPa
Design Pressure 145PSI/1.0MPa
Max Allowable Working Pressure 145PSI/1.0MPa
Working Temprerature ≤302℉/150℃
Design Temprerature 302℉/150℃
Maximum Design Metal Temperature 17.6℉/-8℃
Air Tank Capacity 400L / 105.6GAL
Air Dryer Capacity Flow 100CFM
Machine Size: 72.8" x 33.5" x 66.1"
Packing Size: 75.5" x 38" x 72.8"
N.W.:/ G.W.: 1235 lbs/ 1474 lbs

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
