Product Description

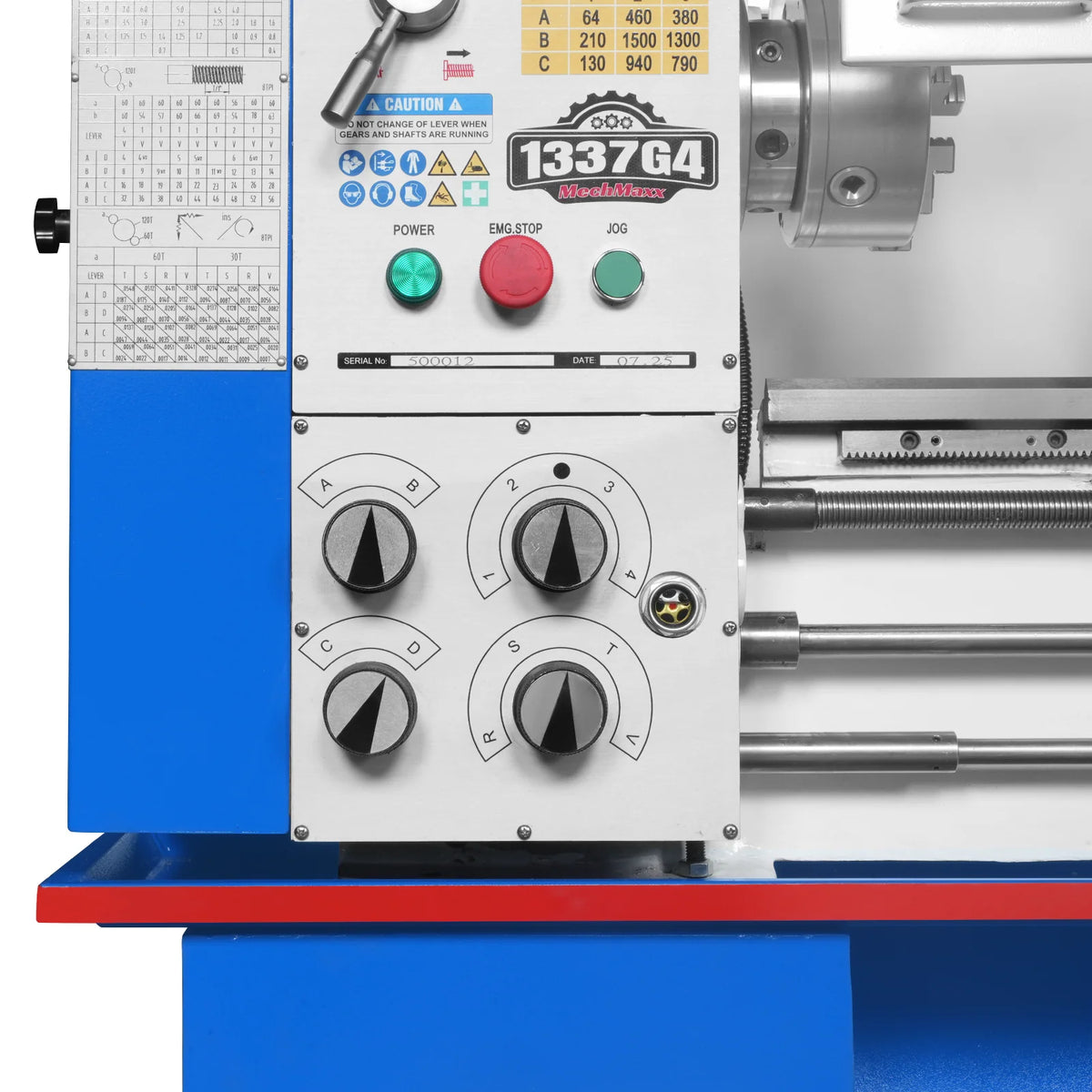

Specification 1337G4
Motor 1.5HP(1100W) 220V 60HZ 1PH
Swing Over Bed 13 in/ 330mm
Swing Over Cross Slide 8.46 in/ 215mm
Swing Over gap 19.09 in/ 485mm
Distance Between Centers 37 in/ 940mm
Bed Width 7.12 in/ 181mm
Spindle Bore 1.57 in/ 40mm
Spindle Mount Cam-Lock Mechanism
Spindle Type D1-4
Spindle Taper MT5
Tailstock Taper MT3
Tailstock Quill Travel 3.93 in/ 100mm
Cross Slide Travel 5.9 in/ 150mm
Compound Slide Travel 3.54 in/ 90mm
Carriage Travel  33.46 in/ 850mm

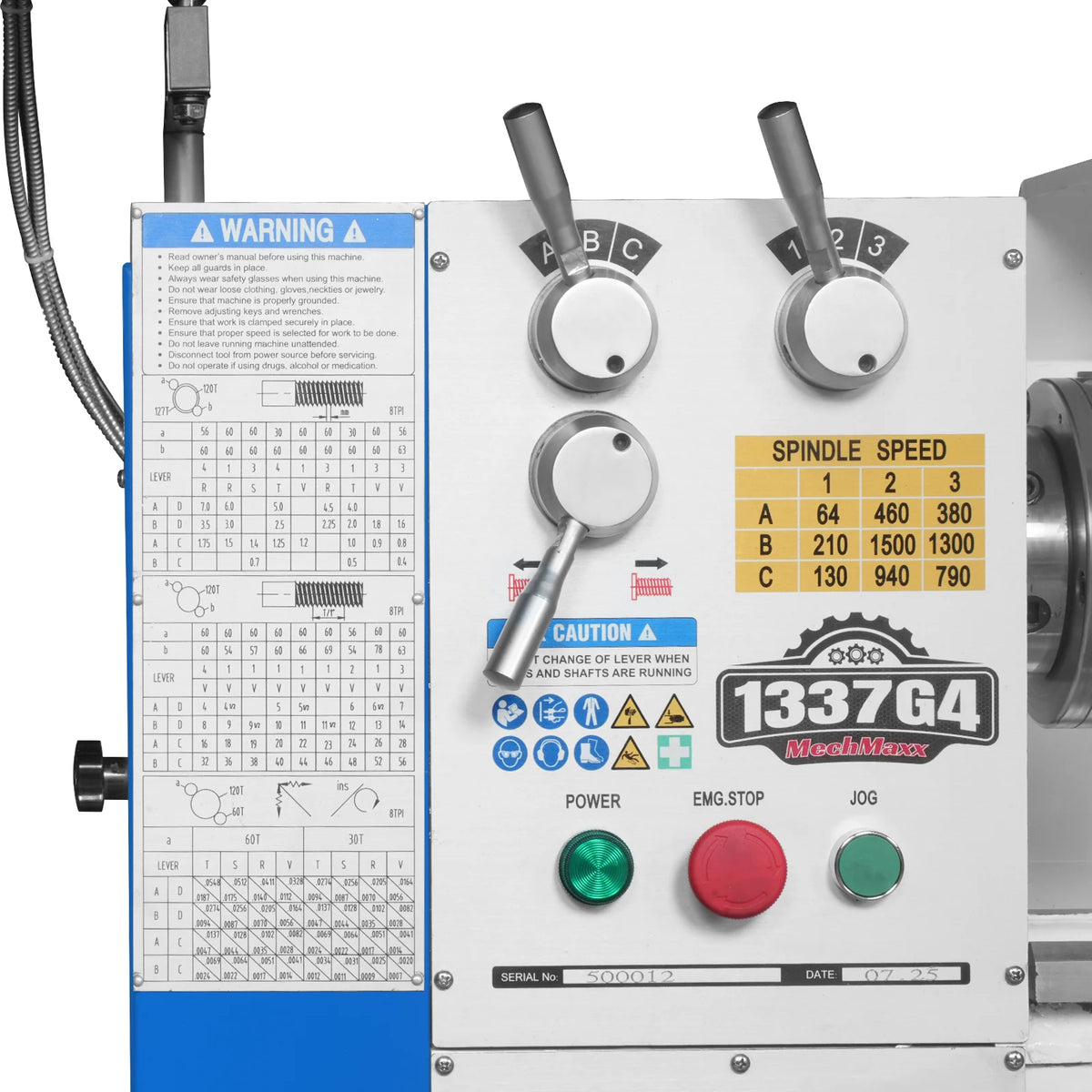

Spindle Speeds 64-1500RPM
Number of Speed Ranges 9
Longitudinal Feeds 0.002''-0.0548''
Transverse Feed Rate 0.00055''-0.015''
Leadscrew Size & Pitch 22mm/ 7/8''  8TPI
Threading Capacity - Inch 4-56TPI(34 kinds)
Threading Capacity - Metric 0.4-7mm(26 kinds)
Maximum Tool Bit Size 14X14mm
Coolant System NO
Approximate Shipping Dimension Weight 70 X 29.5 X 29.9 in 1320.8 lbs

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
