Product Description

Air Compressor Information
Model ML1023
Voltage 230V 3PH 60HZ(L1+L2+L3,G)
Air Flow Capacity 32.8CFM

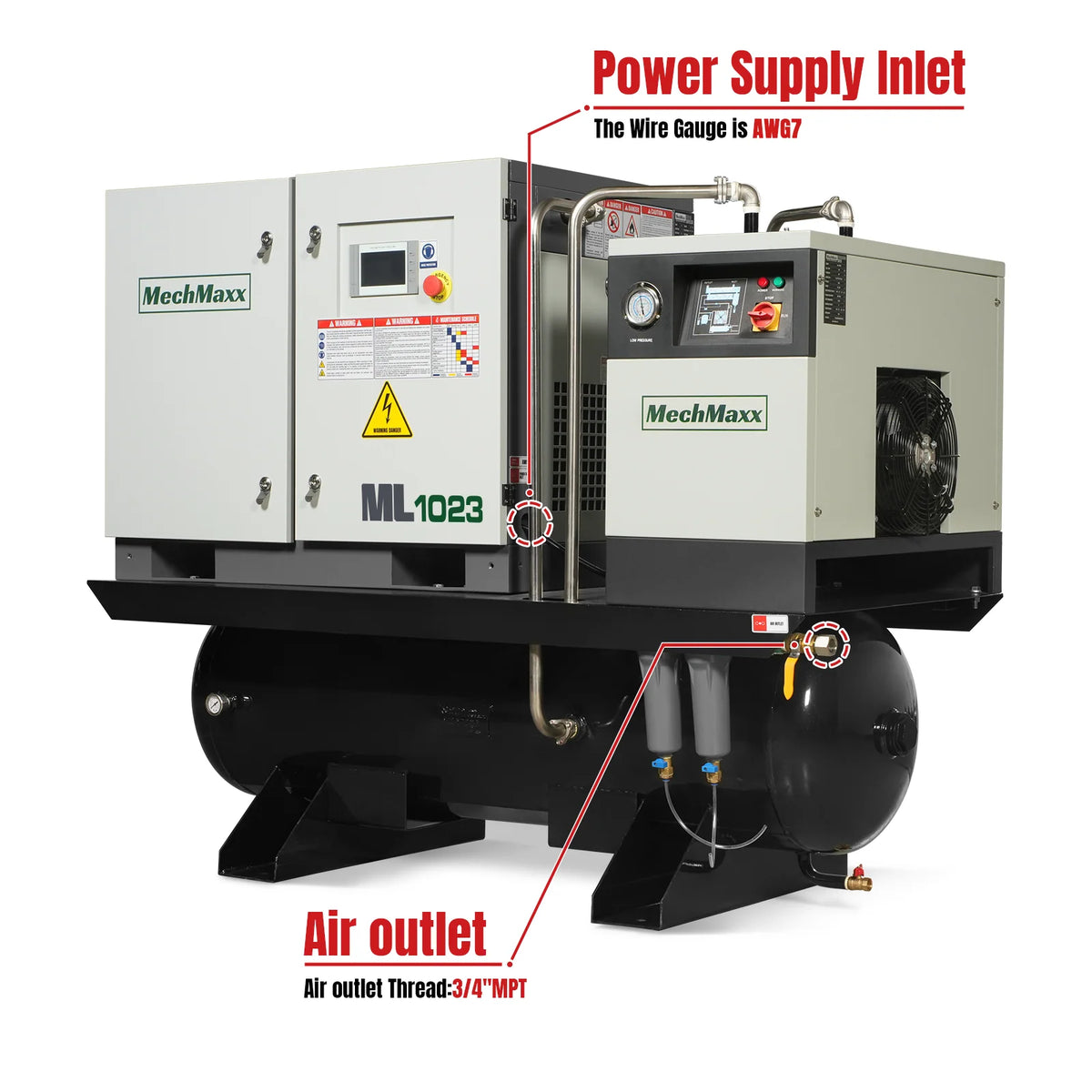

Wire Gauge AWG7
Air Outlet Thread 3/4" NPT
Oil Tank Capacity 1.05Gal (4L)
Rated Power 10HP
Rated Pressure 116 PSI (0.8 MPa)
Noise Level 65dba
Motor Speed 3500RPM
Oil Type Oil Lubricated
Oil System Splash Lubricated
Recommended Oil Grade S3R46
Oil Sight Glass Yes
Air Tank & Refrigerated Air Dryer Information
Working Pressure ≤145PSI/1.0MPa
Design Pressure 145PSI/1.0MPa
Max Allowable Working Pressure 145PSI/1.0MPa
Working Temprerature ≤302℉/150℃
Design Temprerature 302℉/150℃
Maximum Design Metal Temperature 17.6℉/-8℃
Volume 66GAL/250L
Air Dryer Capacity Flow 50CFM
Machine Size: 67.5" x 31.5" x 54"
Packing Size: 68.9" x 34.6" x 61"
N.W.:/ G.W.: 935 lb/1056 lb

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
