Product Description

Rated Capacity 100 Tons Pump Type Single-acting

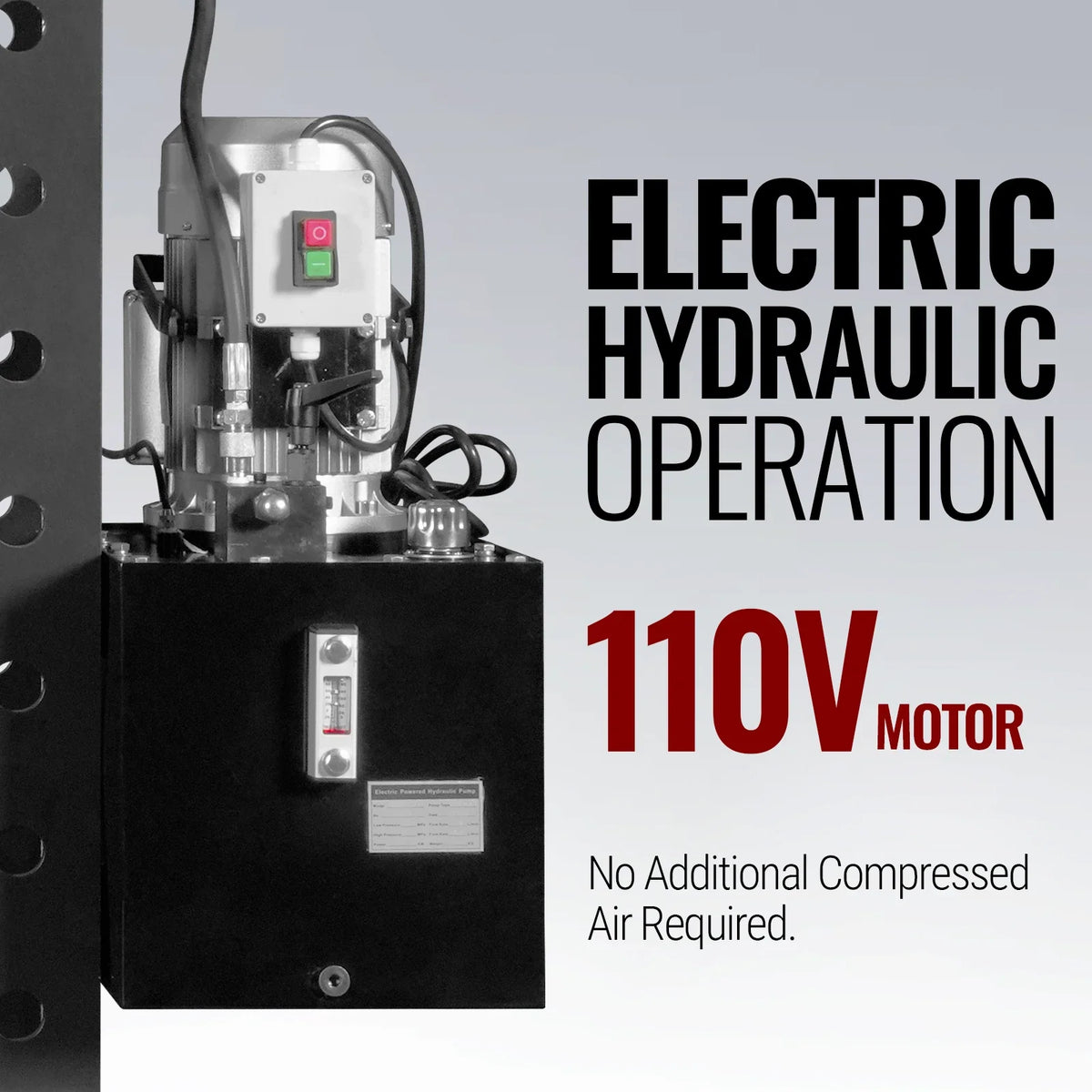

Operation Type Electric Hydraulic Operation Voltage 110V / 60Hz
Ram Stroke 11.8 in Power 2 HP(1.5 kW)
Ram Diameter 3.4 in Revolutions Per Minute 1800 RPM
Cylinder Bore 5.5 in Working Pressure – Low Pressure Stage 725 PSI

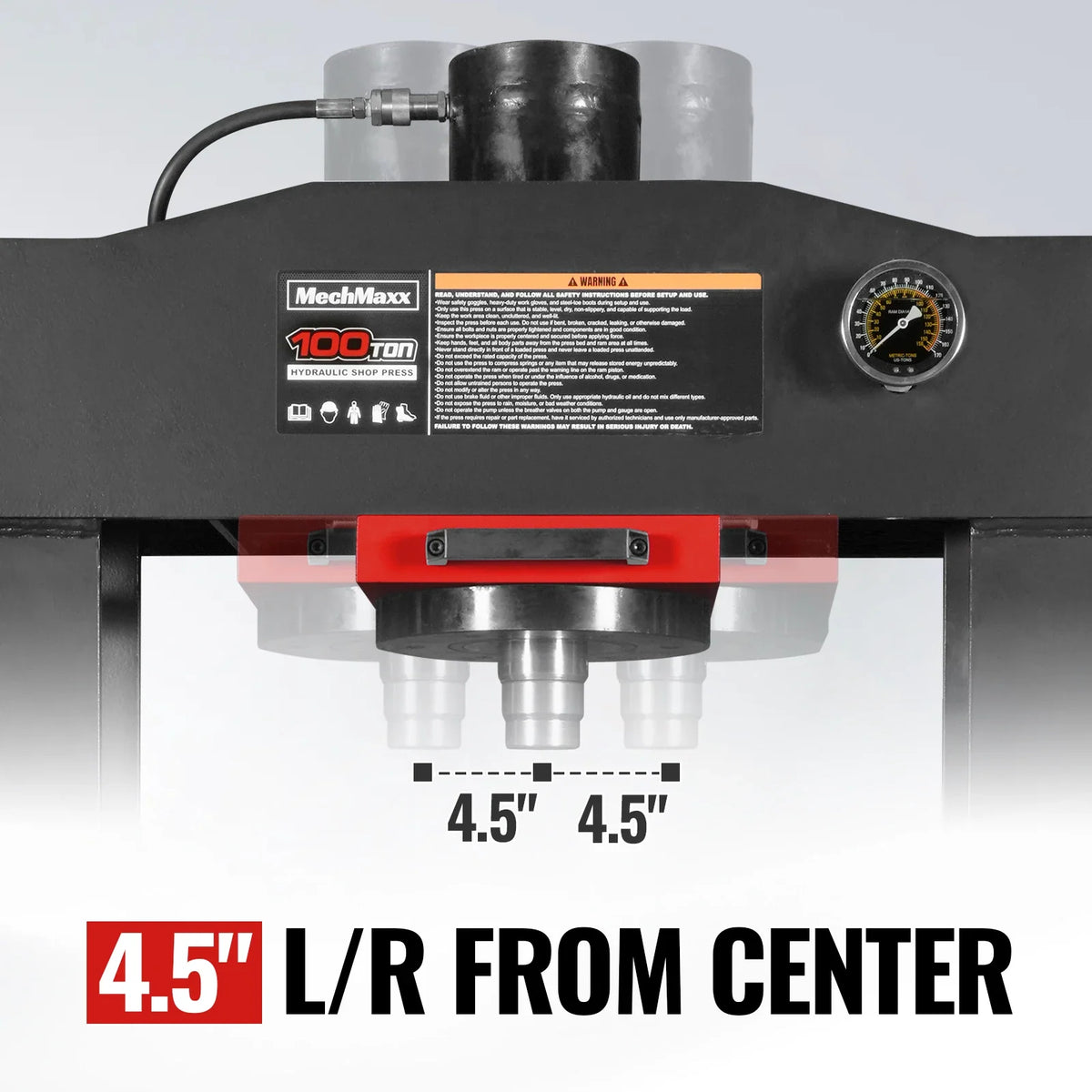

Ram Range of Movement 4.5 in Left / Right from Center Working Pressure – High Pressure Stage 9135 PSI
Bed Depth 8 in Flow Rate – Low Pressure Stage 1.74 GPM
Bed Height 11.8 in Flow Rate – High Pressure Stage 0.48 GPM
Minimum Ram to Bed 3.5 in Usable Oil Capacity 7.9 US Gallons
Maximum Ram to Bed 33.1 in Oil Tank Capacity 10 US Gallons

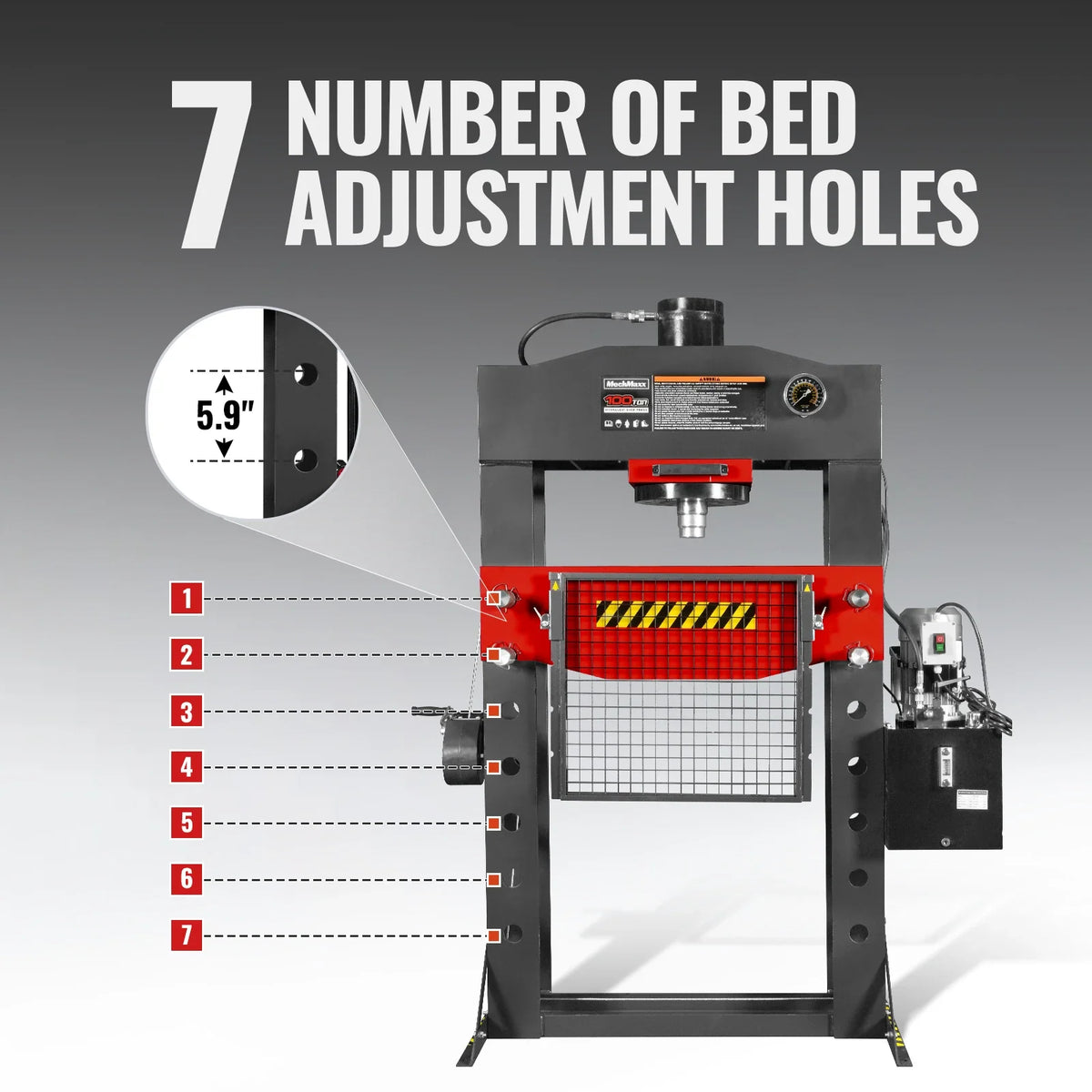

Number of Bed Adjustment Holes 7 Recommended Hydraulic Oil AW32 Hydraulic Oil
Bed Adjustment Hole Spacing 5.9 in Pump Size 25.5 x 16 x 12 in

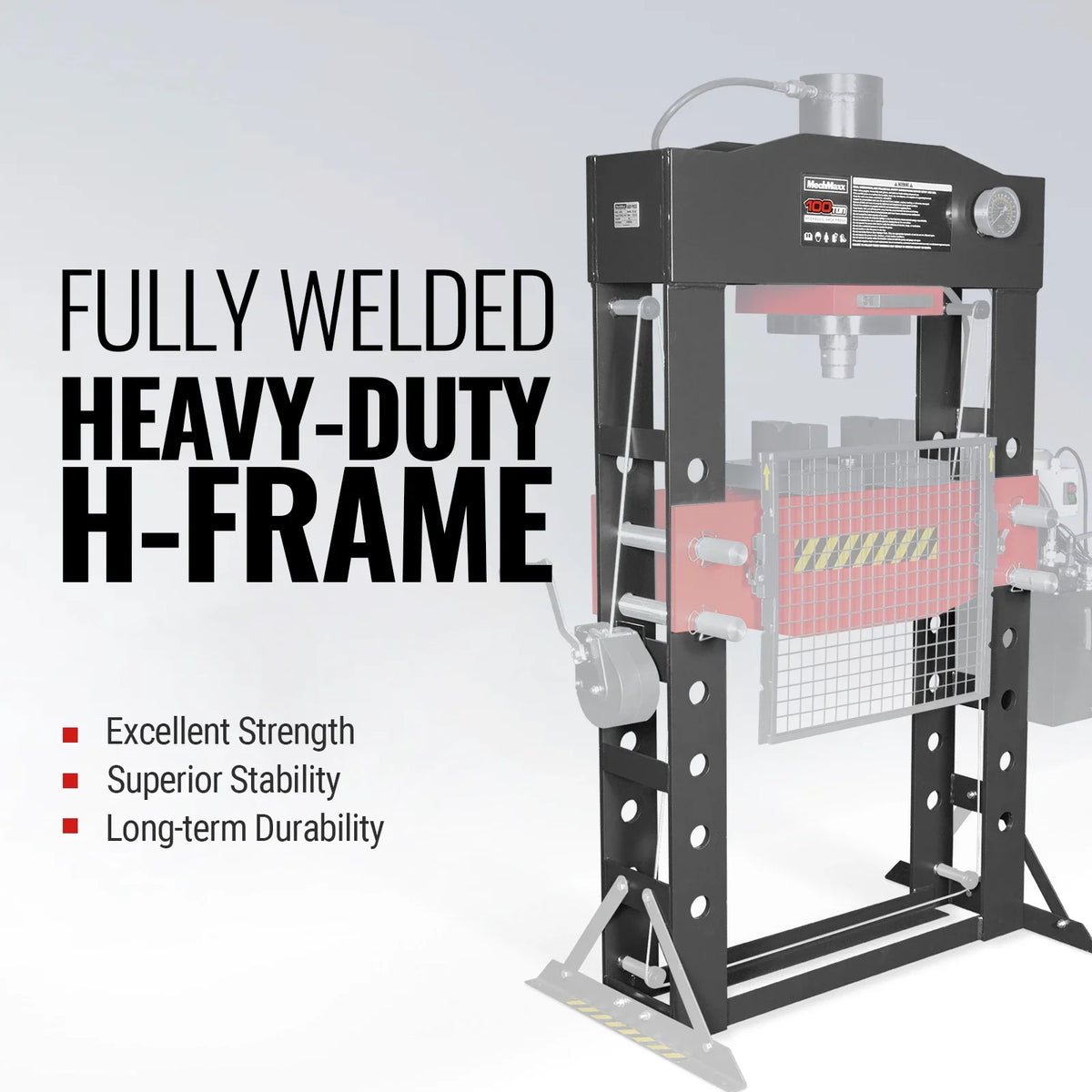

Frame Construction Fully Welded Heavy-Duty H-Frame Gauge Type 4 in Oil-Filled Pressure Gauge

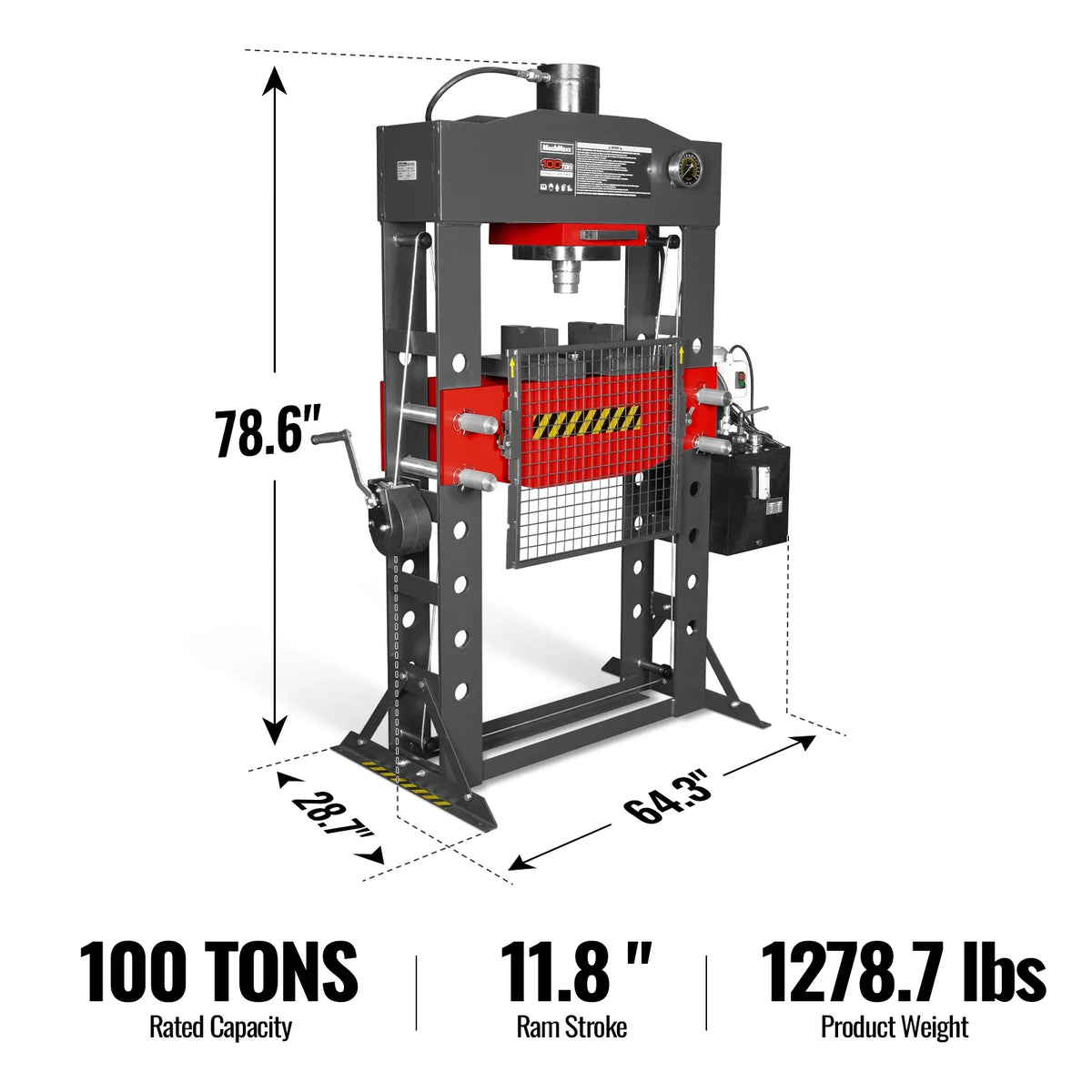

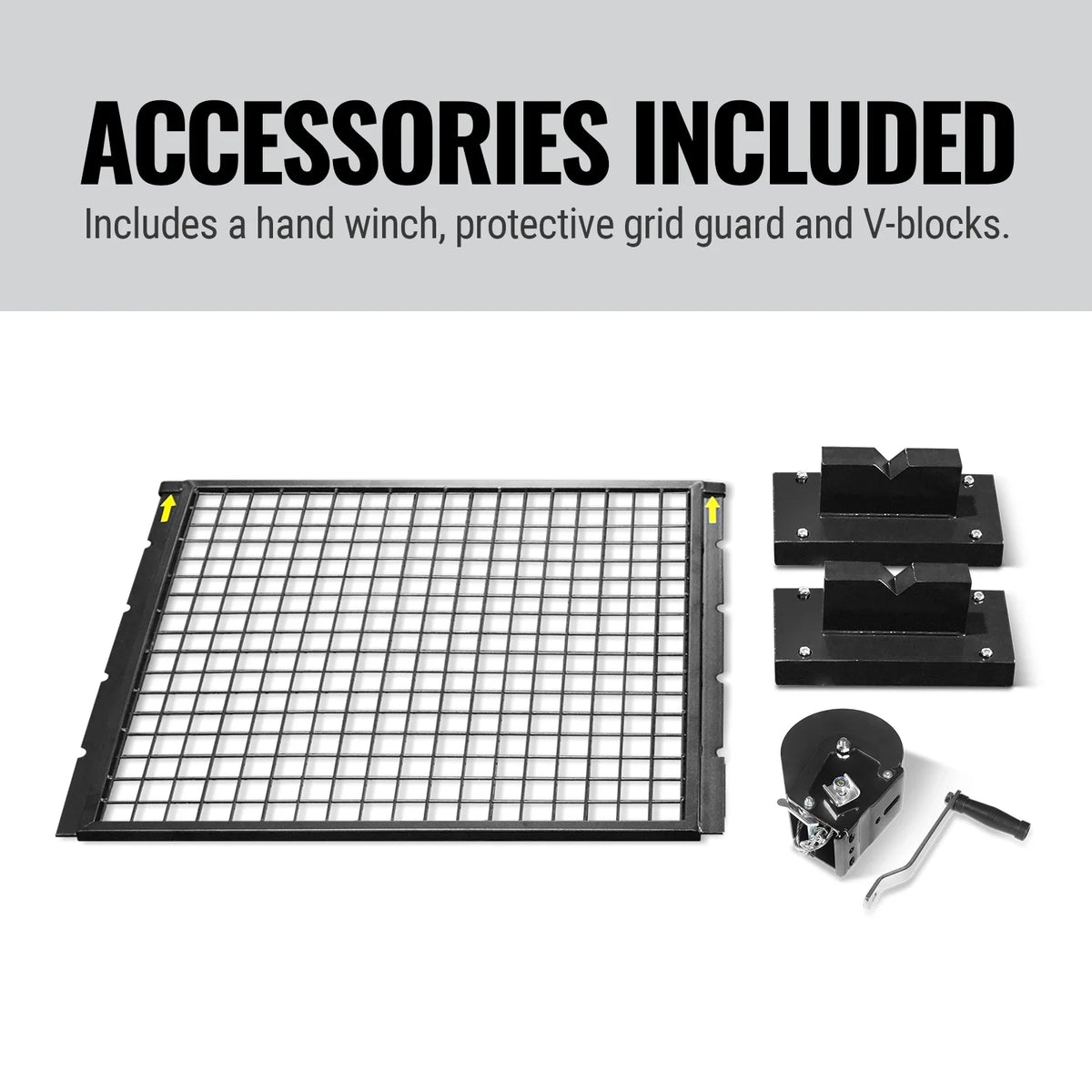

Assembled Size (H x D x W) 78.6 x 28.7 x 64.3 in Included Accessories Protective Grid Guard, Hand Winch, V-Blocks
Internal Frame Width 30.9 in Packing Size (LxWxH) 81.1 x 44.5 x 17.3 in

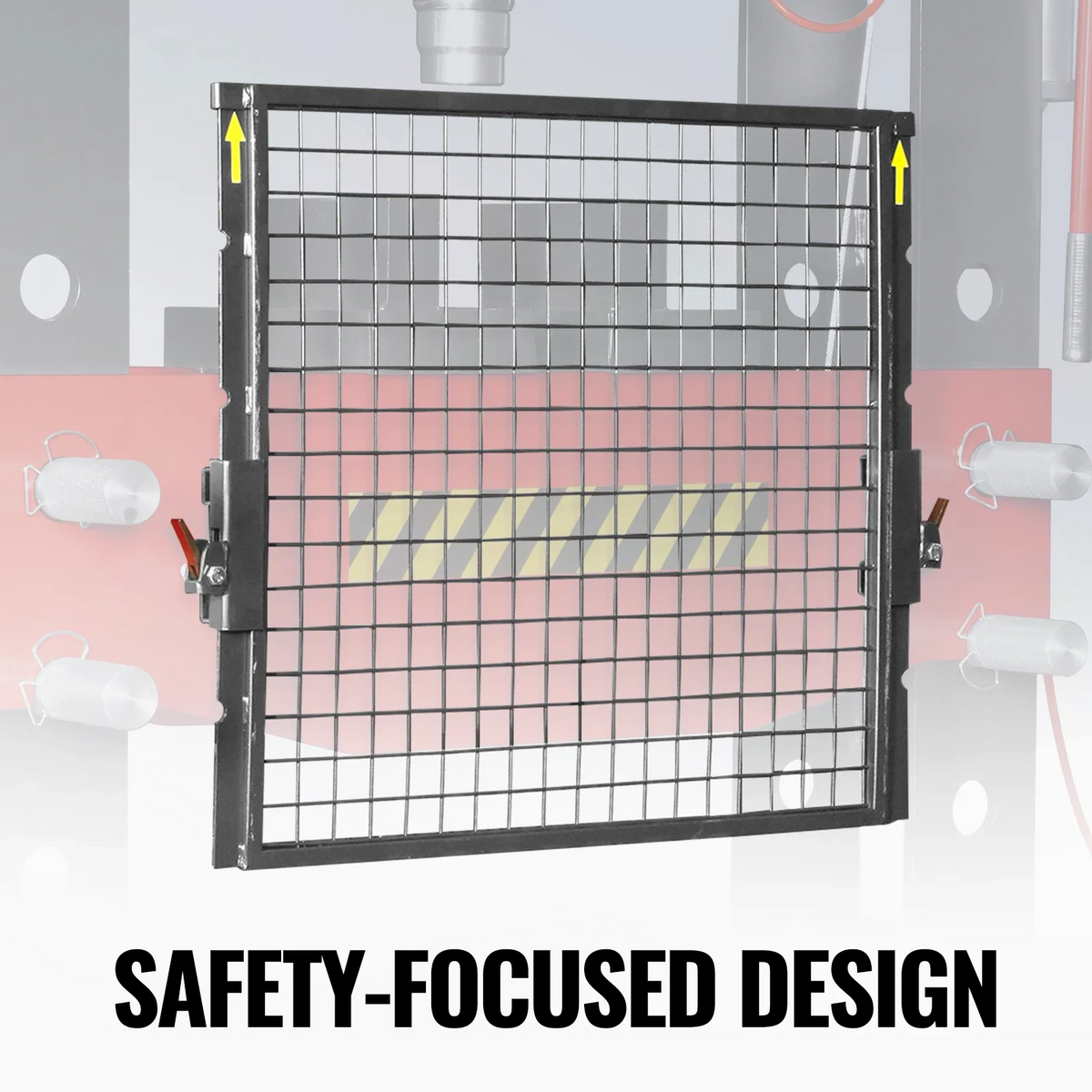

Protective Grid Guard Size 27 x 24 in Weight (N.W/G.W.) 1278.7 lbs / 1391.1 lbs
Ram Retraction Spring

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
