MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC

SKU 500101
$4,199.00
$4,199.00
  Lease to own   Pay as low as   $/week

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Summit Source USA, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@summitsourceusa.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 2 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 3 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 4 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 5 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 6 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 7 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 8
MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 2 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 3 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 4 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 5 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 6 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 7 MechMaxx 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1030VC - view 8

Product Description

Lathe Parameter
Motor Power (Lathe) 1.5 HP, 110V, single-phase, 10A
Swing Over Bed 9-7/8" (250 mm)
Swing Over Cross Slide 5-1/2" (140 mm)
Swing Over Saddle 5" (127 mm)
Distance Between Centers 29-1/2" (750 mm)
Bed Width 5-3/8" (135mm)
Spindle Bore 1-1/2" (38 mm)
Spindle Mount Intrinsic back plate
Spindle Taper MT#5
Tailstock Taper MT#2

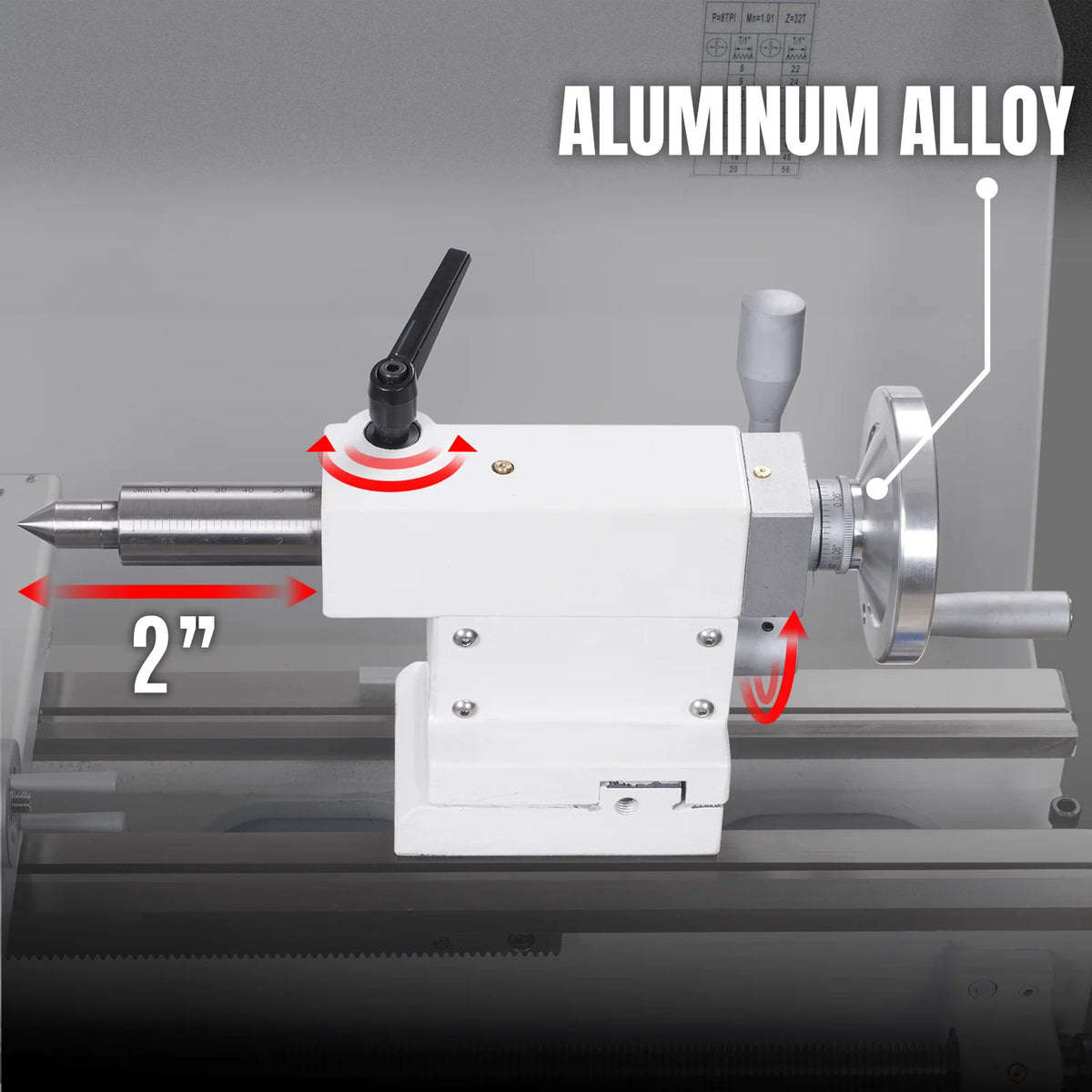

Tailstock Quill Travel 3" (75 mm)
Tailstock Offset
Carriage Travel 27-1/2" (700 mm)

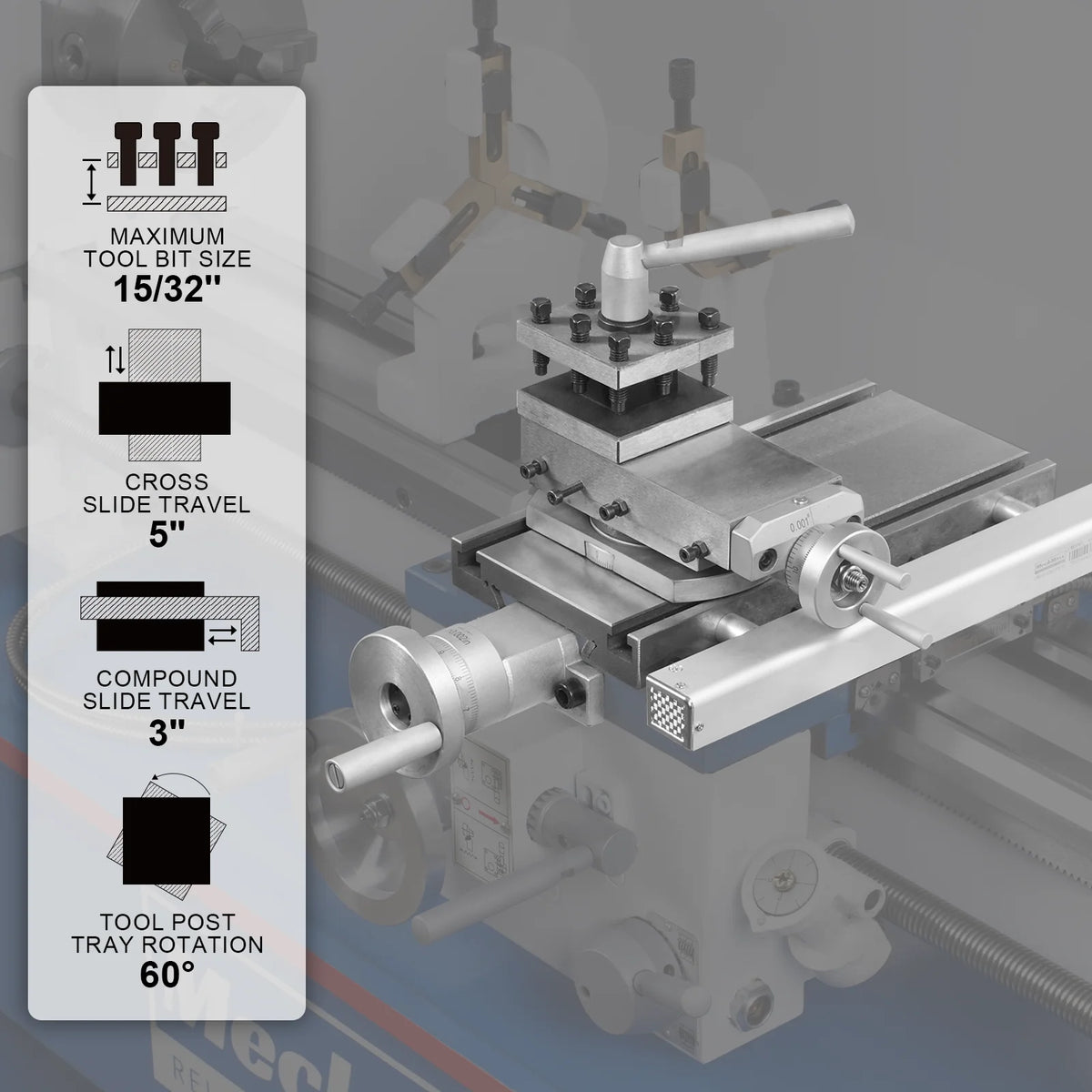

Cross Slide Travel 5" (127 mm)
Compound Slide Travel 3" (75 mm)

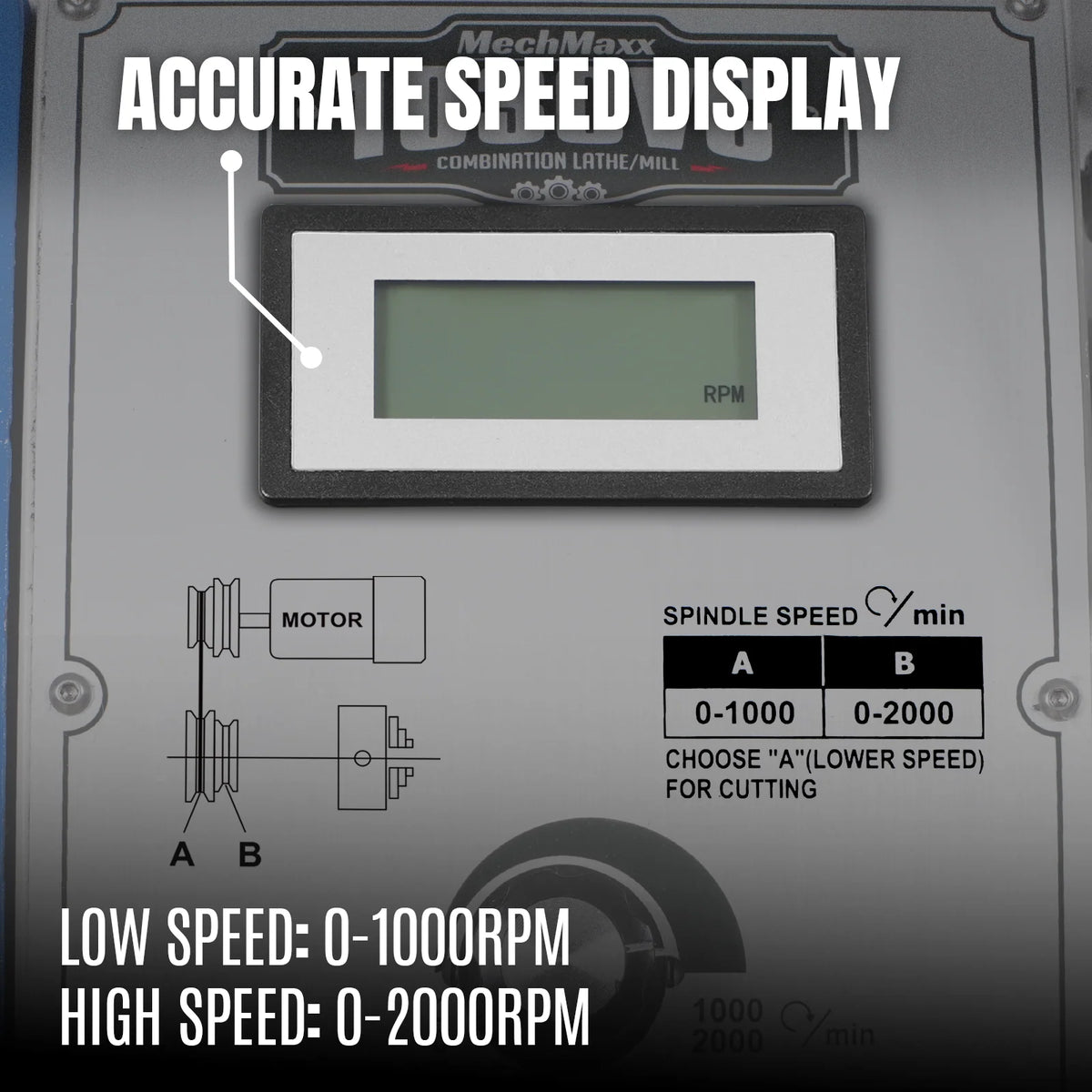

Spindle Speed Range 0–2000 RPM
Number of Speed Ranges Variable
Longitudinal Feed Rate 0.0025 – 0.014 in./rev.
Transverse Feed Rate 0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch 20mm(8TPI)
Threading Capacity – Inch 8–80 TPI(37KINDS)
Threading Capacity – Metric 0.35 – 3.0 mm(21kinds)

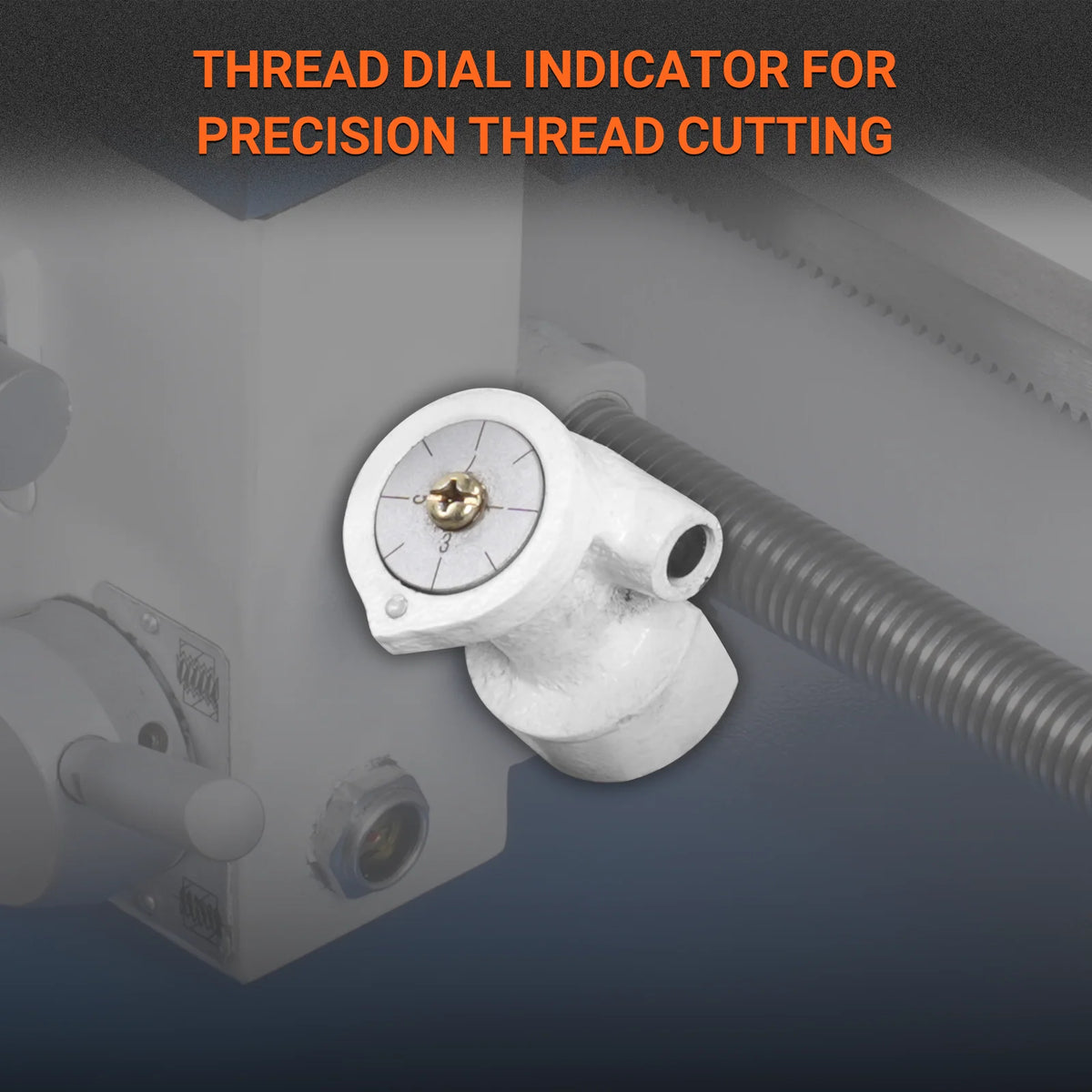

Thread Dial Indicator YES
Tool Post Type 4-way
Max Tool Bit Size 15/32''(12mm)
Mill/Drill Head Specifications
Motor Power (Mill Head) 1HP(750W)
Spindle Taper R8
Spindle Speed Range 0-2500RPM
Spindle Travel (Quill Stroke) 2"(50mm)
Quill Diameter Ø60 mm
Drawbar Thread Size 7/16"-20
Drilling Capacity 5/8"(16mm)
End Milling Capacity 1/2"(12mm)
Face Milling Capacity 2"(50mm)
Vertical Travel (Z-Axis) 10-7/8"(275mm)
Head Tilt Angle ±90°
Distance: Spindle to Table 10-7/8"(275mm)
Distance: Spindle to Column 6-5/8"(170mm)
Column Type Dovetail Slot
Drive Type Belt Drive Brushless
Machine Dimensions & Utilities
Electrical Requirements 110V 1PHASE
Overall Dimensions 52''x26''x38-1/4''(1320x660x970mm)
Net / Gross Weight 440/517lbs(200/235kg)
Shipping Dimensions 56''x27''x39''（1420x680x970mm）
