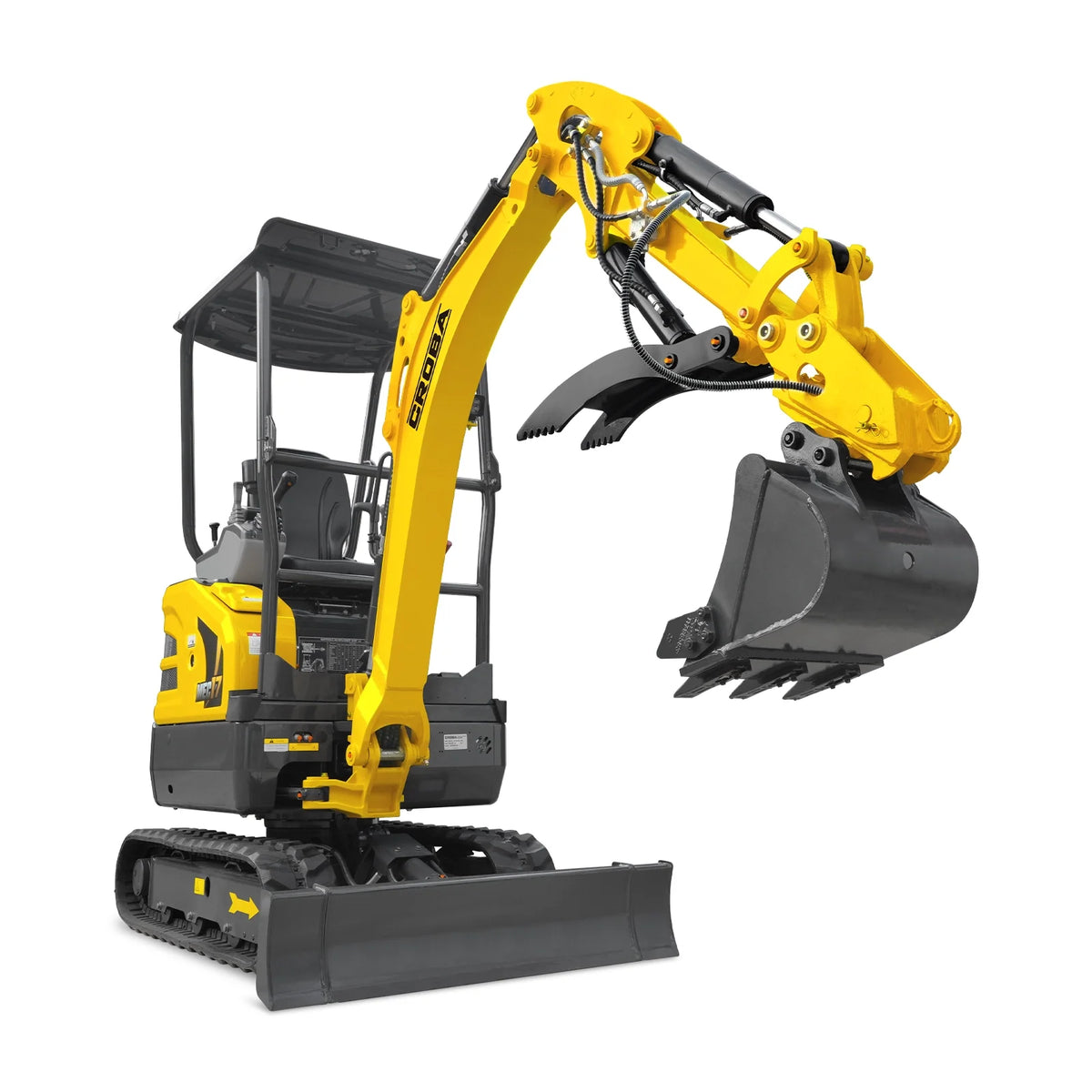

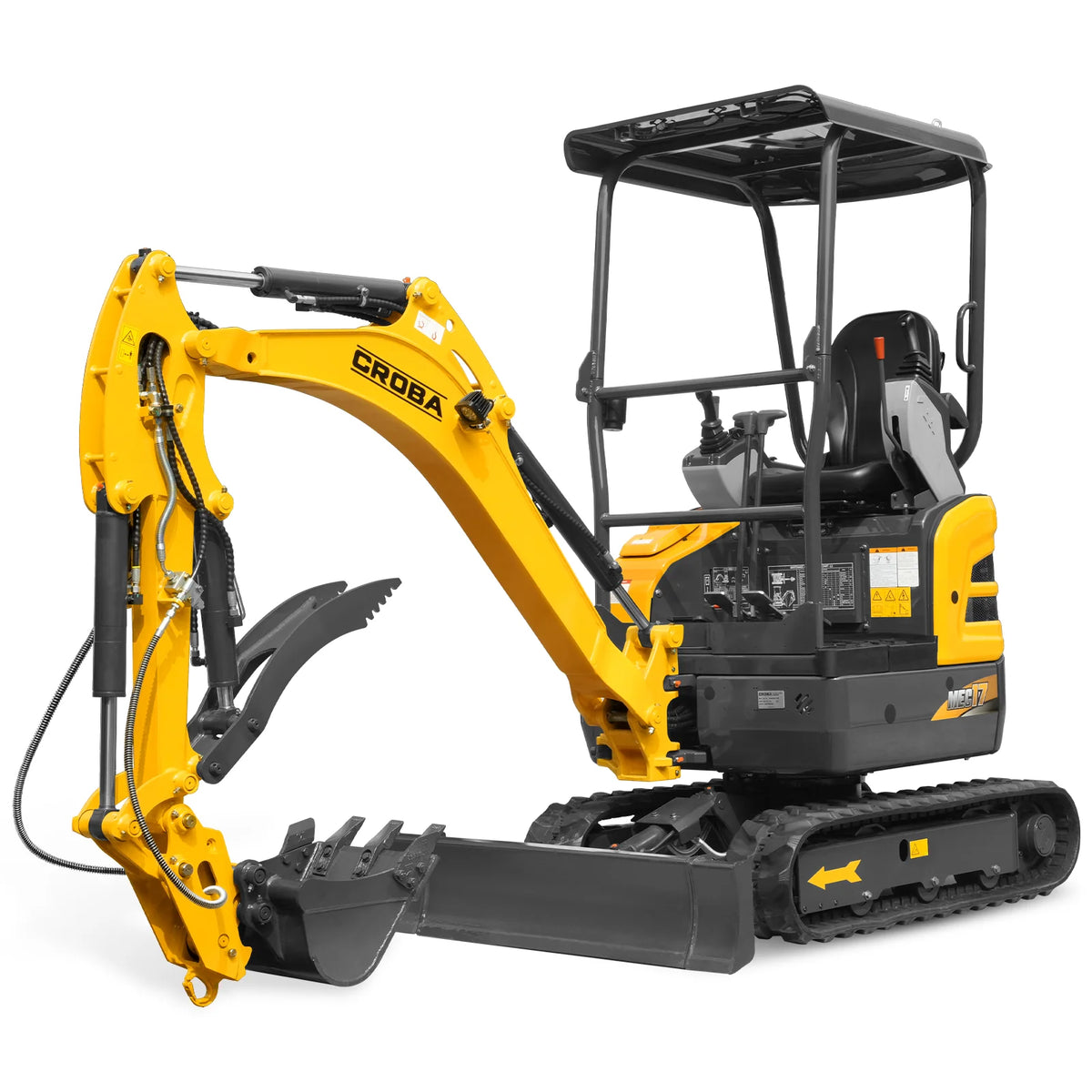

Product Description

ENGINE
Model Kubota D902 Rated speed 2300rpm
No. of Cylinders 3 Displacement 54.8in³
Stroke 2.9in Engine Output - Net 15.8hp
Bore 2.83in Warranty For Engine 2-Year or 2,000-Hour Warranty, Whichever Comes First.
TRAVEL SYSTEM
Track Roller Qty 6 Maximum Traction Force - Low Speed 4047lbf
Type of tracks Rubber Ground Clearance 5.7in
Travel Speed - High 2.67 mile/h Ground Pressure 4.2psi
Travel Speed - Low 1.37 mile/h Gradeability - Maximum Maximum 30 degrees
WEIGHT
Operating Weight 4190lb
HYDRAULIC SYSTEM
Pump Flow at 2,300 rpm 17gpm Auxiliary Circuit - Secondary - Flow 2.6gpm
Auxiliary Circuit - Primary - Flow 9.1gpm
SWING SYSTEM
Swing Motor Danfoss Swing Speed 9.5rpm
Swing Motor Type SW2.5K Tail Swing Radius 25.6in
DIGGING FORCE
Boom Length 72in Bucket Digging Force 3597lbf
Arm length 43.3in Arm Digging Force 2136lbf
CAPACITIES
Fuel Tank 5gal Hydraulic Oil Tank 3.6gal
Engine Oil 1gal System Capacity 5.7gal
BUCKET
Bucket Capacity 1.4ft³ Bucket Width 17.7in
SCOPE OF WORK
Max. Digging Height 147in Min Turning Radius Of Working Device 57in
Max. Dumping Height 104in Max. Lift Above Ground 11in
Max. Digging Depth 95in Max. Drop Below Ground 7.5in
Max. Vertical Digging Depth 81in Boom Swing - Left 65°
Max Digging Radius 160in Boom Swing - Right 50°
DIMENSIONS
Overall Length 133in Blade Height 11.8in
Ground Contact Length (Transportation) 96in Crawler Wheel Base 48.4in
Overall Width (Retracted/Expanded) 39/51in Shoe Width 9.1in
Overall Height (To Top Of Cab) 94.7in Track Length 62.7in
Counter Weight Ground Clearance 18in Track Gauge (Retracted/Expanded) 30/42in
Blade Width (Retracted/Expanded) 39/51in
SERVICE
Package Method Wood Case Warranty For Machine 1 Year
Packing Size 112.6x43.7x99.2 in Weight (N.W./G.W.) 4012/4580lb

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust), lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Specifications are provided for comparison purposes only and are subject to change without notice.
